Manufacturer: | Phoenix Contact - Germany |
Part number: | 2884554 ILB BT ADIO MUX-OMNI 8 |

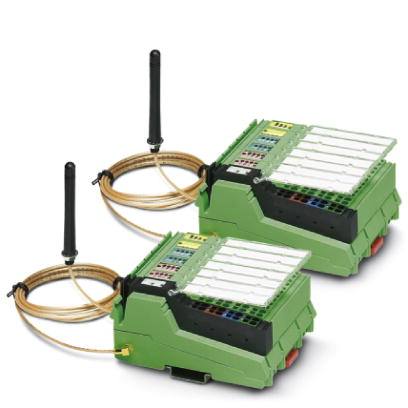

Description: | 8 dBm Wireless MUX set with omnidirectional antenna. |
Note: | This product is no longer available. It has been replaced by 2884208 |
Wireless standard: | Bluetooth 1.2 |
Frequency range: | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Transmission power: | 8 dBm (6.3 mW, controlled automatically) |
Supply voltage: | 19.2 VDC ... 30 VDC (including ripple) |
Digital inputs: | 16 single-wire |
Digital outputs: | 16 single-wire, 500mA per output channel. Total current of all outputs 8A. Short-circuit, overload and reverse voltage protection. |
Analog inputs: | 2 |
Analog input type: | 0 mA ... 20 mA or 0 V ... 10 V |
Measured value resolution: | 12bits |
Antenna type: | OMNI omnidirectional antenna, 2 dBi, Lambda/2, with fixing bracket, 1.5 m cable |
