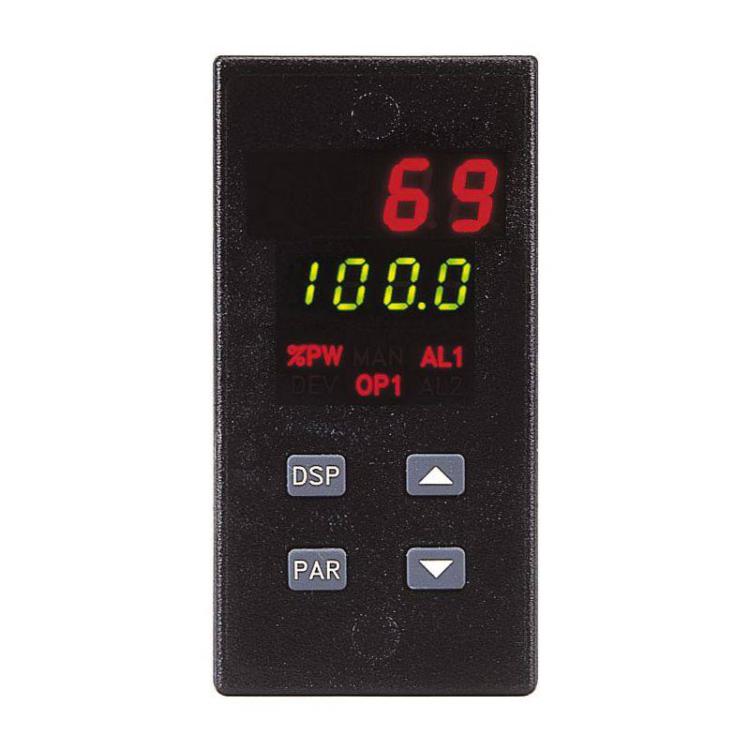

Red Lion TCU PID temperature controller 1/8 DIN

Options:

£0 (Inc VAT)

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads
Red Lion Controls - USA
 TCU PID Temperature Controller
 Note: This product family is now obsolete. Please read the Red Lion TCU and PCU EOL (End of Line) notices.
          Only 3 models have been listed on this site.
          Please refer to the datasheet for the complete range.
Size  1/16 DIN (48x48mm)
Display  2 line by 4 Digit LED
 Top line (Red) - Process value 0.4" (10mm)
 Bottom line (Green) - Parameters  0.3" (7.6mm)
Input

 TC and RTD Inputs

Supply voltage  115/230Vac
Outputs  Relay, Logic/SSR drive, triac and analog
 Check datasheet for models
Protection  NEMA 4X/IP65
Other features  PID Control with Reduced Overshoot
 On Demand Auto-Tuning of PID Settings
 Programmable display and User input

Parts:
TCU10000: IP65, OP1 only, 115/230Vac
TCU10001: IP65, OP1 + 2 alarms, 115/230Vac
TCU11001: IP65, OP1 + 2 alarms + 4/20mA out, 115/230Vac
OMD00000: Relay module for TCU/PCU
OMD00001: Triac module for TCU/PCU
OMD00003: Logic/SSR drive module for TCU/PCU
