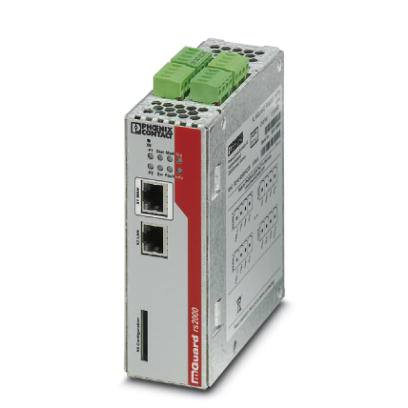

Manufacturer: | Phoenix Contact - Germany |
Function: | Network security appliance in metal housing, with extended temperature range, SD card slot, up to 2 VPN tunnels, 2-click firewall for maximum ease of configuration, router with NAT/1:1 NAT, high-performance firewall/VPN (up to 124 Mbps/40 Mbps) |
Dimensions: | 45mm x 130mm x 114mm (W x H x D) |
Degree of protection: | IP20 |
Ambient temperature (operation): | -20 °C ... 60 °C |
Supported browsers: | HTTPS support required |
Dynamic Host Configuration Protocol (DHCP) support: | Server or Relay Agent |
Network Time Protocol (NTP) client: | Client |
Link Layer Discovery Protocol (LLDP): | As per protocol 802.2 |
Remote Syslog Logging: | On externals server |
Virtual private network (VPN) throughput: | max. 40 Mbps (Router mode, VPN bidirectional throughput). max. 27 Mbps (Stealth mode, VPN bidirectional throughput) |
Number of VPN tunnels: | 2 (Fixed, Ipsec (IETF standard)) |
Encryption methods: | DES, 3DES, AES-128, -192, -256 |
Internet Protocol Security (IPsec) mode: | ESP tunnel / ESP transport |
Authentication: | X.509v3 certificates with RSA or PSK |
Data integrity: | MD5, SHA-1 |
1:1 Network Address Translation (NAT) in the VPN: | Supported |
Firewall data throughput: | max. 124 Mbps (Router mode, default firewall rules, bidirectional throughput). max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput) |
Firewall rules: | Simplified 2-click stateful inspection firewall |
Filtering: | Incoming or outgoing traffic |
Routing: | Standard routing, NAT, 1:1-NAT, port forwarding |
Status and diagnostic indicators LEDs: | P1, P2, Fault, State, Error, LAN, WAN |
Signal contact control voltage: | 24V DC (typical), current 250mA (short-circuit resistant) |
Supply voltage range: | 9V DC ... 36V DC |
