Red Lion CR10000700000210 HMI, 7
Red Lion CR10000700000210 HMI, 7
Red Lion CR10000700000210 HMI, 7
Red Lion CR10000700000210 HMI, 7
Red Lion CR10000700000210 HMI, 7
Mouse over image to zoom in
Image is for illustrative purposes only

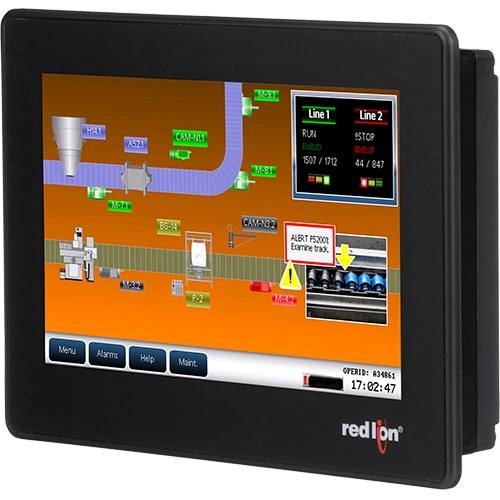

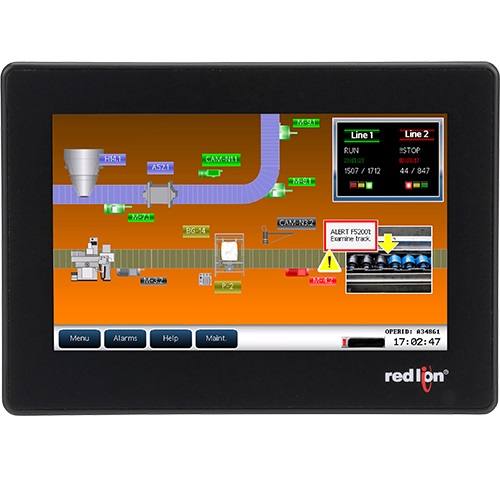

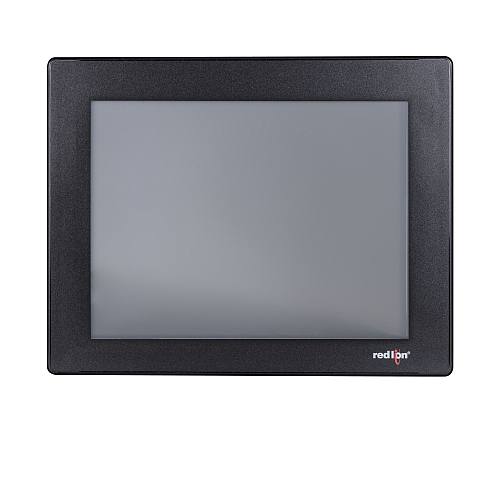

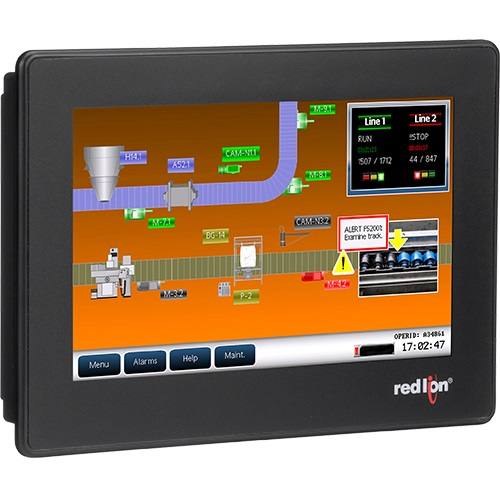

Red Lion CR10000700000210 HMI, 7" wide screen

Part: CR10000700000210
£891.00
£1069.20 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Manufacturer:Red Lion Controls - USA;
Part number:CR10000700000210

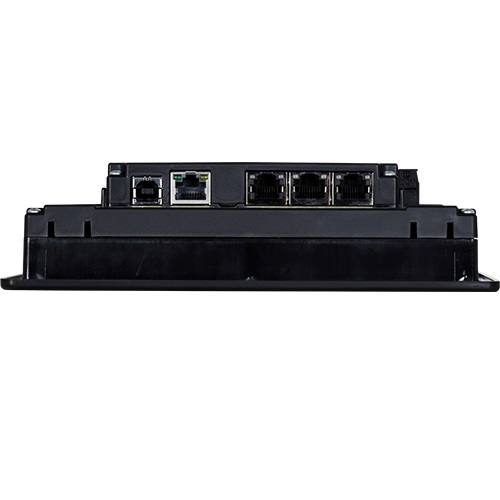

Ethernet ports:1x 10/100 Ethernet port
Serial ports:1x RS-232 serial port, 1x RS-232 / RS-485 serial port
USB device port:1x USB device port for upload/download
USB host port:No
Protocol conversion:Yes. Communicate with over 300 protocols. Easily convert between serial, USB and Ethernet devices. Manage multi-vendor environments with ease
Web server:No
Data logging:No
Power supply:24VDC
Widescreen format:Yes
Resolution:800x480px, 16M color display
SD card slot:Yes. For database upload/download only
Software:Configured using Crimson® 3.1 software
Enclosure ratings:IP66 NEMA 4X front panel
