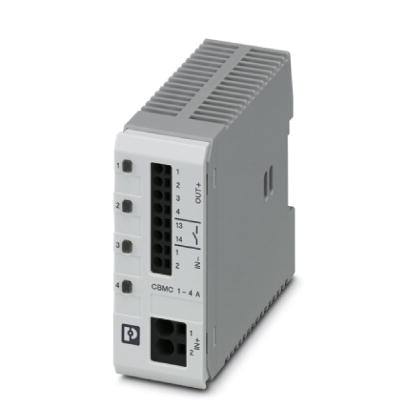

Manufacturer: | Phoenix Contact |
Part number: | 2906031 CBMC E4 24DC/1-4A NO |
Description: | Multi-channel, electronic device circuit breaker for protecting four sensitive load circuits at 24VDC against overload and short circuit. |
: | The nominal currents can be set to up to 4A for each channel in a very compact design and the currents are also electronically locked against accidental adjustment. |
: | The integrated current analysis differentiates the load current and distinguishes between normal operating current, overload, short circuit, and capacitive current; thanks to intelligent detection, shutdown only occurs in the event of an error. |
: | Ideal for protecting sensors and sensor cables, thanks to adapted failsafe element. With tool-free Push-in connection technology, for installation on DIN rails. |
Fuse type: | Electronic |
Operating voltage: | 18VDC - 30VDC |
Rated voltage: | 24VDC |
Rated current IN: | max. 16ADC max. 40ADC (per terminal position when bridging additional devices via IN+). 1 / 2 / 3 / 4A DC (adjustable per output channel) |
Undervoltage shutdown: | <= 17.8 VDC (active), >= 18.8 VDC (inactive) |
Surge voltage shutdown: | >= 30.5 VDC (active), <= 29.5 VDC (inactive) |
Max. capacitive load: | 30000 µF (Depending on the current setting and the short-circuit current available) |
Vibration resistance, test duration: | Per axis and direction |
Height: | 90 mm |
Width: | 36 mm |
Depth: | 98 mm |
Ambient temperature (operation): | -25 °C to 60 °C |
Altitude: | <= 2000 m (amsl (above mean sea level)) |
Shock (operation): | 30g |
