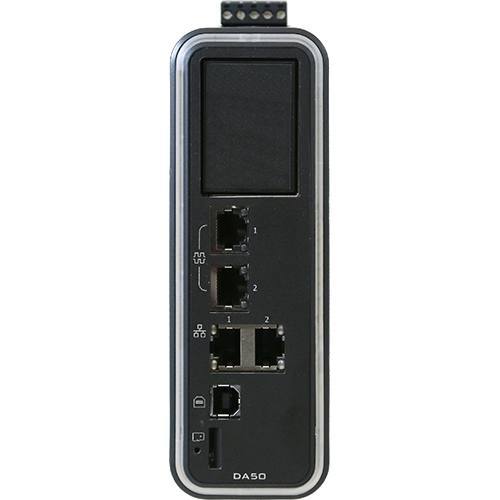

Red Lion DA50D0B5A0000000 FlexEdge IIoT controller, mixed serial, 2xRS232 serial

Part: DA50D0B5A0000000
£1379.00
£1654.80 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Overview :The DA50D’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. Regardless of the brand of PLC or other equipment specified, the FlexEdge platform, powered by Crimson®, enables connectivity to virtually anything in your system.
Typical application :Protocol conversion, web server, datalogging
Controller :DA50D0BNN0000000
Sled 1 :DAS00PN2221IS000

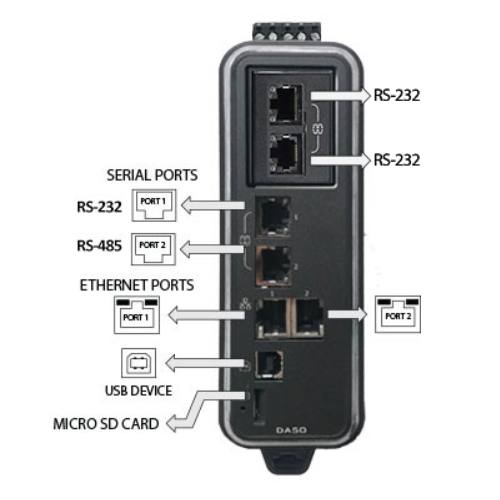

Ethernet ports :Two 10/100Base-T(X)
Serial ports :One isolated RS-232 serial port, one isolated RS-485 serial port

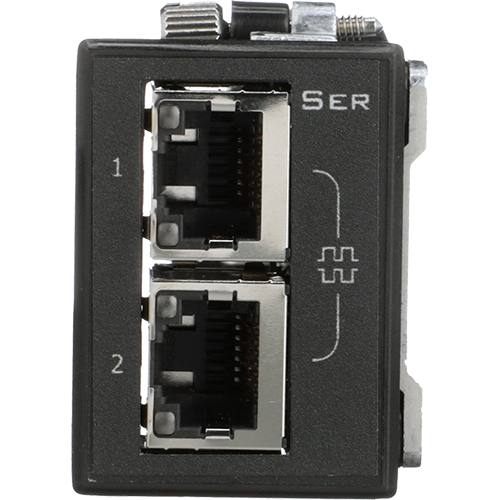

Sled ports :Two individually isolated RS-232 serial ports
Onboard memory :1 GB flash
Expansion memory :Up to 256 GB, micro SD
Supply voltage :12-24 VDC +/- 15%
Operating temperature :-40 to 75 C
Certification :UL Class 1, Div 2,  ATEX / IECEx
Aditional Features :Intuitive diagnostic light ring for at-a-glance system status indication
    :Point and click connectivity to IIoT cloud platforms
    :Embedded OPC UA server and client enables seamless communication with upstream system
    :Advanced Web Server with Javascript, Bootstrap, CSS and HMTL5 support delivers operations visibility anywhere
    :Three widescreen virtual HMI options for remote monitoring and control
    :Real-time data, event and security logging with cryptographic signature support
    :Future-proof modular design accommodates field-installable sleds
