Supplier: | Red Lion Control - USA |

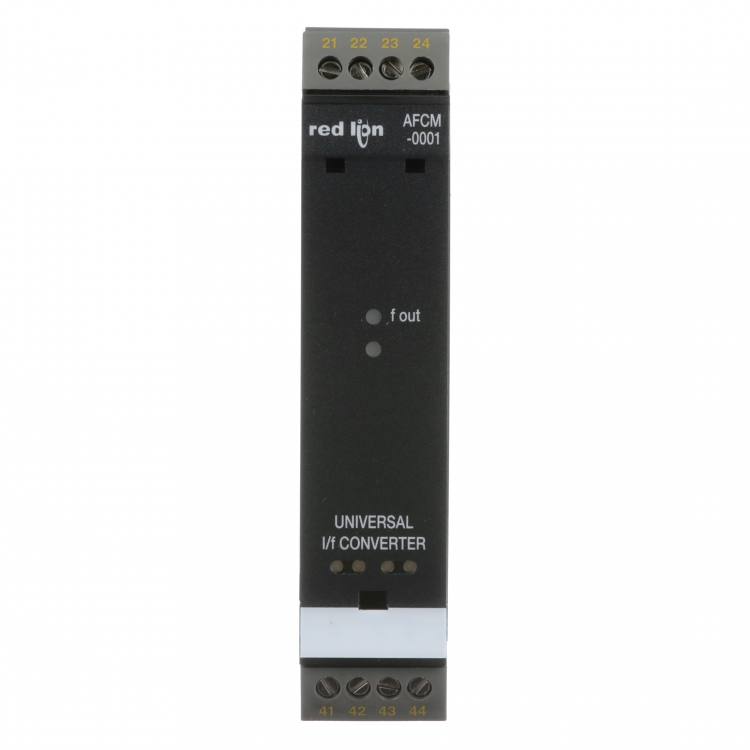

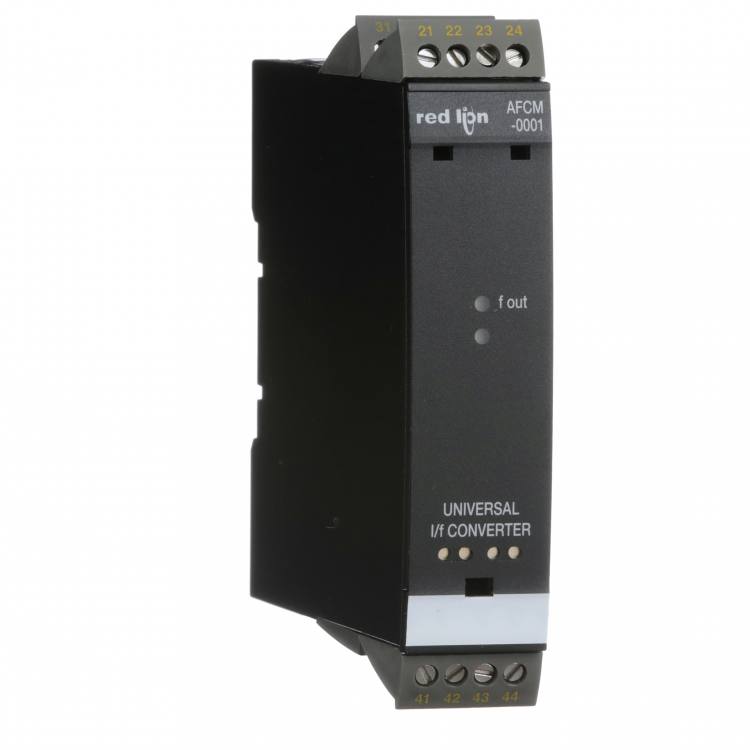

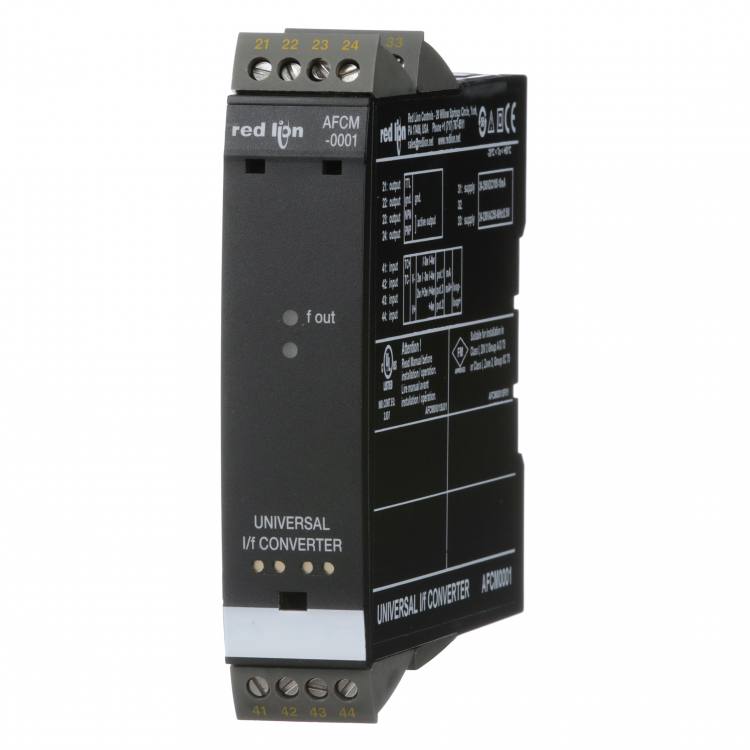

Part number : | AFCM0001 |
Notes : | This is the suggested replacement for AFCM0000. Please check datasheet. |
: | Programmable via detachable display front (PGMMOD00 or PGMMODC1 - see accessories). |
: | Process calibration, signal simulation, password protection, error diagnostics and selection of help text in several languages. |
: | Programming module can be left attached to function as a display, if desired. |
Input: | RTD, TC, Ohm, potentiometer, mA and V |
Output type: | NPN, PNP and TTL. Frequency (up to 0.001Hz - 25kHz) |
Frequency range : | 0-25000 Hz |
Min. frequency (span) : | 0.001 Hz |
Duty cycle (0...25000 Hz) : | 50% |
Programmable pulse time (f ≤ 500 Hz) : | 1...1000 ms (max. 90% duty cycle) |
Isolation: | 3-way Isolation Of Analog Signals |
Configuration: | Inputs and outputs selected via DIP switch settings |
Power : | 21.6 to 253VAC, 50-60Hz or 19.2 to 300VDC |
Features : | Linearized, electronic temperature measurement with RTD or TC sensor |
: | Conversion of linear resistance variation to a frequency signal, e.g. from solenoids and butterfly valves or linear movements with attached potentiometer |
: | Power supply and signal isolator for 2-wire transmitters |
: | Process control by way of a frequency signal transmitted to e.g. a PLC or a process computer |
: | Galvanic separation and conversion of analog signals to frequency signals |
