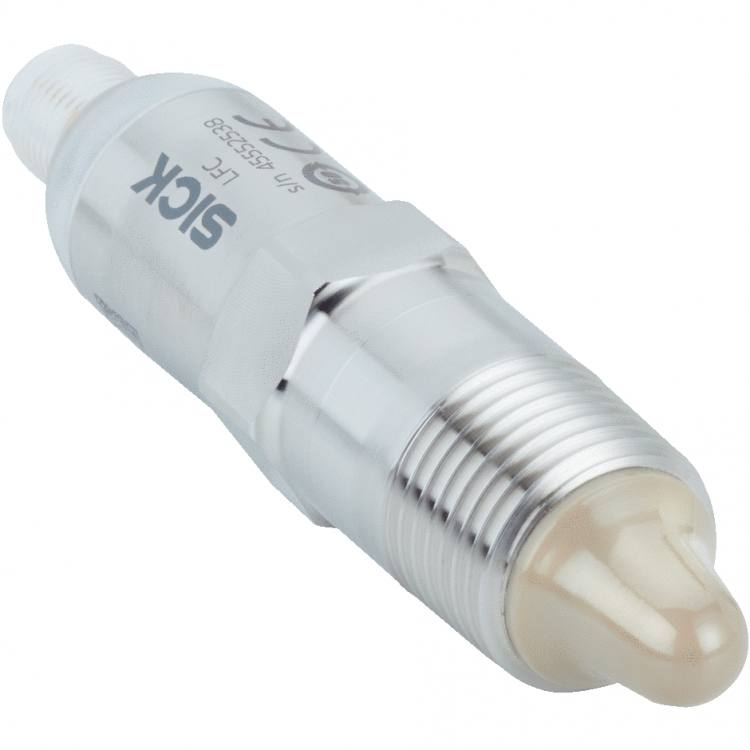

Manufacturer : | Sick - Germany |
Description : | Capacitive level switch |
Medium : | Fluids |
Measurement : | Switch |
Process pressure : | –1 bar ... 25 bar |
Process temperature : | –20 °C ... +100 °C, +135 °C for max. 1 h |
Ambient operating temperature : | –40 °C ... +70 °C |
Response time : | Approx. 500 ms |
Dielectricity constant : | ≥ 2 |
Supply voltage : | 12 V DC ... 35 V DC 1) |
Protection class : | III |
Connection type : | M12 round connector x 1, 4-pin |
Power consumption : | ≤ 0.1 W |
Contamination rating : | 4 |
Enclosure rating : | IP66 / IP67 and IP69 (NEMA type 6P) |
Wetted parts : | Sensor tip PEEK, polished |
Process connection : | ½" NPT PN40, ASME B1.20.1 / 316L |
Housing material : | Stainless steel 1.4404, Plastic (Valox®) |
Sealing material : | NBR (male connector) |
