Manufacturer : | IFM electronic -Germany |

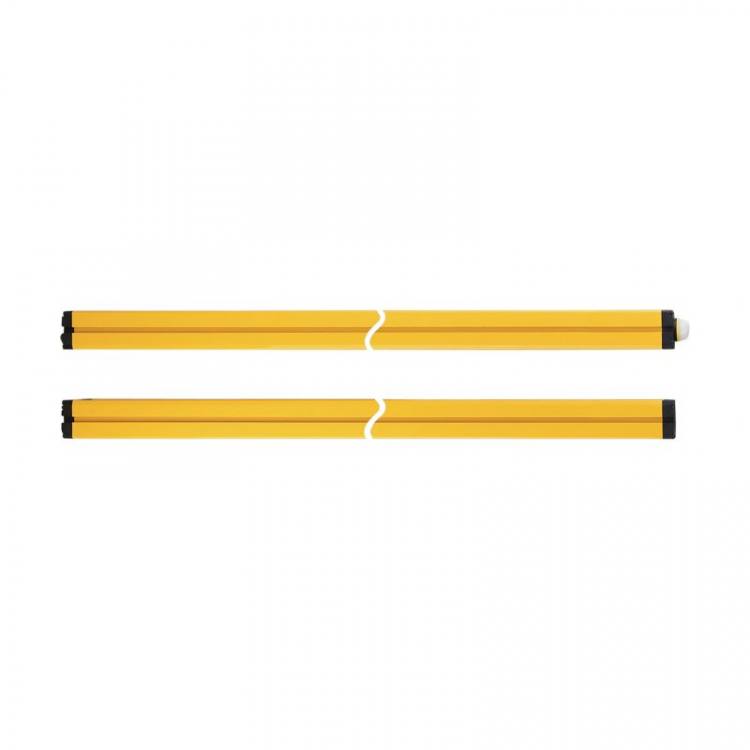

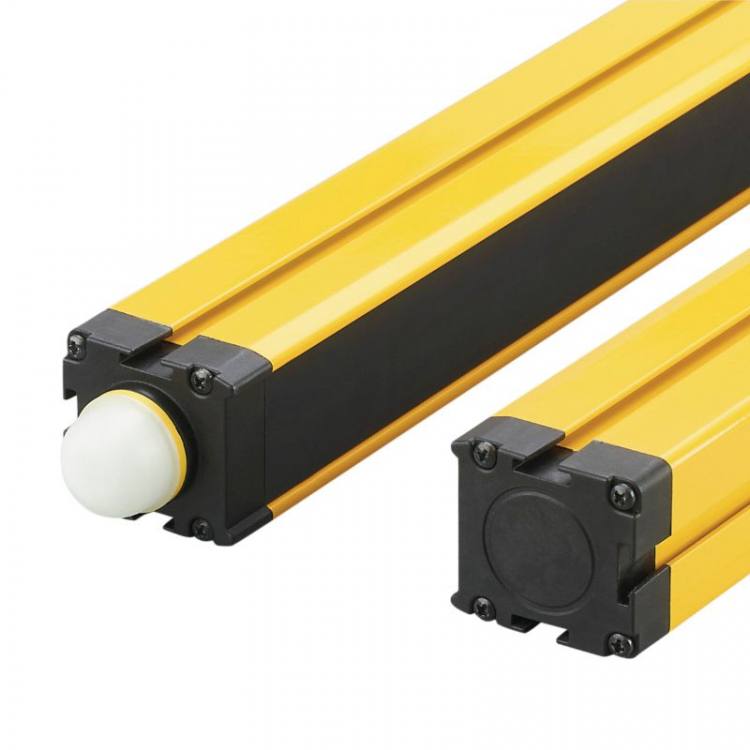

Description : | Safety light grid; Length 685 mm; Operating voltage 24 DC V; PNP; M12 Connector |
Operating voltage [V] : | 24 DC |
Protection class : | III |
Reverse polarity protection : | yes |
Power-on delay time [s] : | < 10 |
Type of light : | infrared light |
Wave length [nm] : | 950 |
Electrical design : | PNP |
Number of OSSD outputs : | 2 |
Max. current load per OSSD output [mA] : | 300; (24 V) |
Short-circuit protection : | yes |
Protected area height [mm] : | 510 |
Number of beams : | 2 |
Protection area width (low light intensity) [m] : | 0...4 |
Protection area width (high light intensity) [m] : | 3...12 |
Response time [ms] : | 5.5 |
Applications : | class C to EN 60654-1 weatherproof application |
Ambient temperature [°C] : | -30...55 |
Storage temperature [°C] : | -30...70 |
Max. relative air humidity [%] : | 95; (non condensing) |
Protection : | IP 65; IP 67 |
Tests / approvals : | EMC IEC 61496-1 |
Shock resistance : | IEC 61496-1 |
Vibration resistance : | IEC 61496-1 |
Safety classification : | |
ESPE type (IEC 61496-1) : | 4 |
ISO 13849-1 : | category 4, PL e |
IEC 61508 : | SIL 3 |
IEC 62061 : | SIL cl 3 |
Mission time TM [h] : | 175200 |
Safety-related reliability PFHD [1/h] : | 9E-09 |
Weight [g] : | 4730 |
Materials : | housing- aluminium; front lens- PC |
Length L [mm] : | 685 |
Display : | transmitter- 1 x LED; receiver- 10 x LED |
Accessories (supplied) : | mounting bracket- 4; slot nuts- 4 |

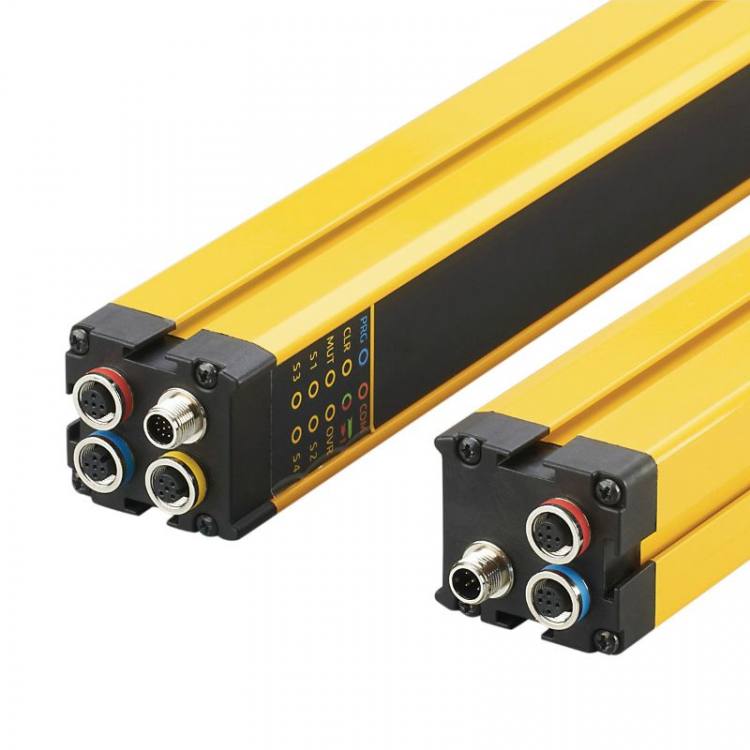

Electrical connection (receiver) : | 1 x M12; Maximum cable length- 100 m; for wire cross-section 1 mm² |
Electrical connection (transmitter) : | 1 x M12 |
