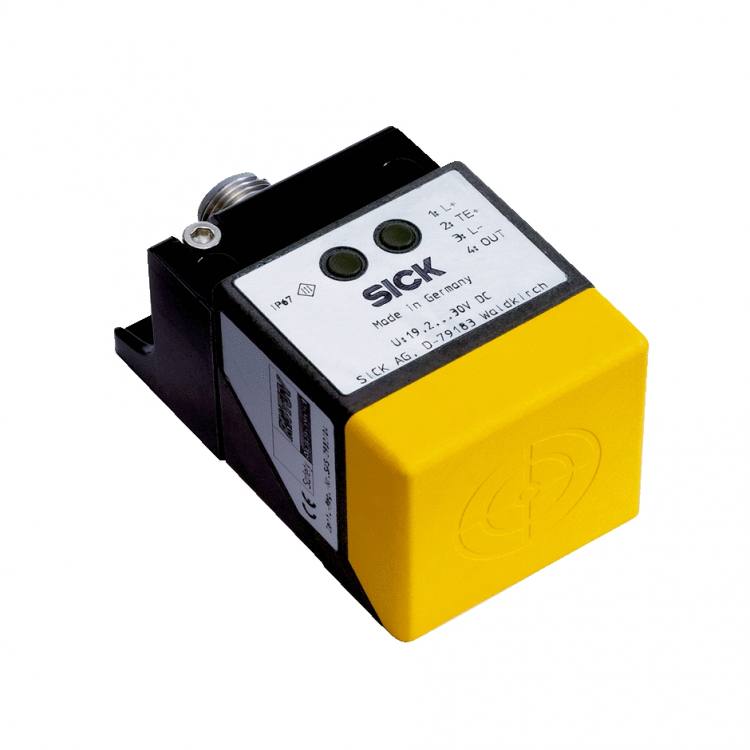

Manufacturer : | SICK - Germany |
Design : | Rectangular Cylindrical Inductive safety switch |
Notes : | See datasheet for full specifications |
Number of safe outputs : | 1 |
Switching delay from state change : | T2 + 20 ms (During this time the output is switched off (Logical “0”), see response range.) |
Housing : | Rectangular 40mm x 40mm |
Housing material : | Zinc die cast (housing), PPE (cover) |
Installation type : | Non-flush |
Enable zone : | 10 mm ... 15 mm (Dependent on material. The indicated values refer to steel ST37.) |
Safe switch off distance Sar : | 30 mm (Dependent on material. The indicated values refer to steel ST37.) |
Actuation directions : | 5 |
Active sensor surfaces : | 1 |
Monitoring time minimum dwell time : | ≥ 0.2 s |
Safety integrity level : | SIL3 (IEC 61508), SILCL3 (EN 62061) |
Category : | Category 3 (EN ISO 13849) |
Performance level : | PL e (EN ISO 13849) |
PFHD (mean probability of a dangerous failure per hour) : | 1.0 x 10-8 (EN ISO 13849) |
TM (mission time) : | 10 years (EN ISO 13849), 20 years (EN ISO 13849) |
Type : | Type 3 (EN ISO 14119) |
Actuator coding level : | Uncoded (EN ISO 14119) |
Classification in compliance with IEC/EN 60947-5-3 : | PDF-M |
Connection type : | Plug connector, M12, 4-pin |
Supply voltage : | 24 V DC (19.2 V DC ... 30 V DC) |
Type of output : | Semiconductor, pulsed |
