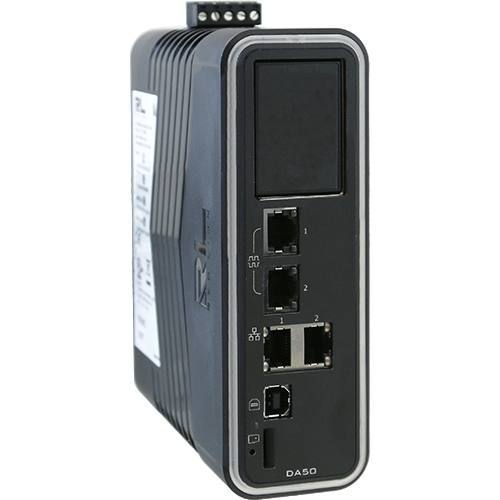

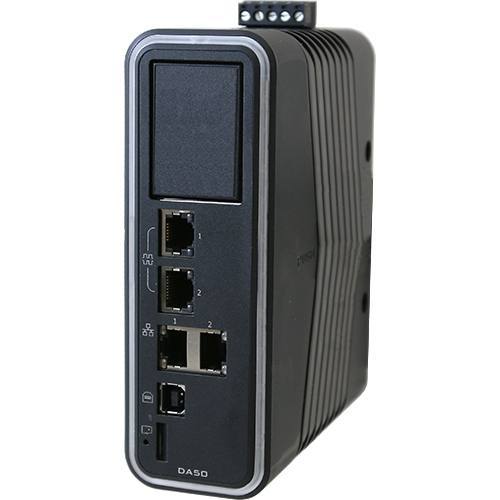

Red Lion FlexEdge™ DA50A0BNN0000020 Protocol gateway with modular communication
Red Lion FlexEdge™ DA50A0BNN0000020 Protocol gateway with modular communication
Red Lion FlexEdge™ DA50A0BNN0000020 Protocol gateway with modular communication
Mouse over image to zoom in
Image is for illustrative purposes only

Red Lion FlexEdge™ DA50A0BNN0000020 Protocol gateway with modular communication

Part: DA50A0BNN0000020
£985.00
£1182.00 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Technical Features
Delivery & Returns
Downloads

Overview
The DA50A’s modular design makes designing for compatibility with rapidly evolving communications standards as easy as replacing a field-installable sled. With advanced networking capabilities, support for 300+ industrial drivers, and IIoT Cloud connectors, communicate with most any brand of PLC or other equipment, and securely transmit data to wherever it is required. Powered by Crimson® 3.2, it is easy to configure secure communications or robust automation capabilities in minutes. With the on-board I/O, you can enable local monitoring and control capabilities, and be notified if the status changes.

SOFTWARE GROUP #2

Specifications

  • Two 10/100Base-T(X) Ethernet ports
  • One (1) isolated RS-232 serial port
  • One (1) isolated RS-485 serial port
  • One (1) AI/DI, One (1) DO
  • Onboard memory: 1 GB flash
  • Expansion memory: Up to 256 GB, micro SD
  • 12-24 VDC +/- 15%
  • -40 to 75 C Operating Temperature
  • UL Class 1, Div 2 Certification
  • ATEX / IECEx Certification

Additional Features

  • IP Fallback, IP Transparency, NAT, and routing capabilities
  • VPN Client/Server capabilities with certificate generation
  • 300+ industrial drivers to communicate with anything
  • Point and click connectivity to IIoT cloud platforms
  • Embedded OPC UA server and client enables seamless communication with upstream system
  • Intuitive diagnostic light ring for at-a-glance system status indication
  • Future-proof modular design accommodates field-installable sleds
  • 802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled )

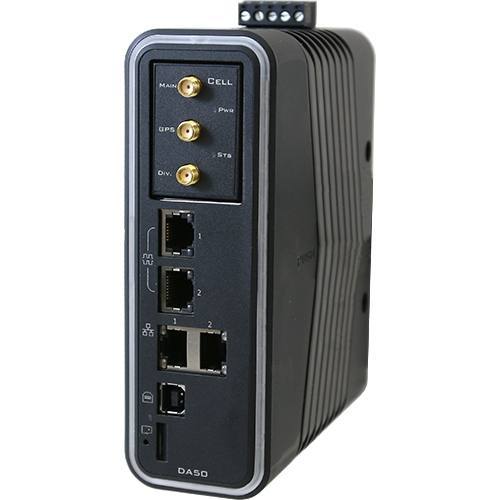

  • Dual SIM 4G LTE Router with Active GPS (with Cellular Communications Sled )
  • Dual RS-232 Serial Ports (with RS-232 Communication Sled)
  • Dual RS-485 Serial Ports (with RS-485 Communication Sled)
  • Mixed RS-232/RS-485 Serial Ports (with Mixed Serial Communication Sled)
Software group:Group 2 - Protocol gateway
