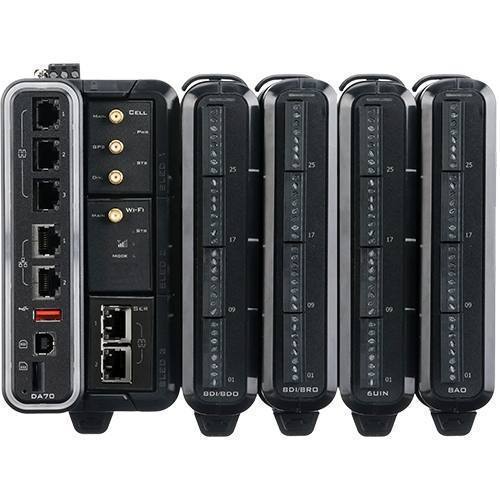

Red Lion FlexEdge® DA70A1FNNNNNN040 3-Sled 2xRS232 1xRS485 advanced automation controller, HDMI port with scalable I/O
Red Lion FlexEdge® DA70A1FNNNNNN040 3-Sled 2xRS232 1xRS485 advanced automation controller, HDMI port with scalable I/O
Mouse over image to zoom in
Image is for illustrative purposes only

Red Lion FlexEdge® DA70A1FNNNNNN040 3-Sled 2xRS232 1xRS485 advanced automation controller, HDMI port with scalable I/O

Part: DA70A1FNNNNNN040
£2272.00
£2726.40 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Technical Features
Delivery & Returns
Downloads

The Red Lion FlexEdge® with HDMI, powered by Crimson®, enables you to effortlessly create real-time productivity scoreboard(s) within minutes! By utilizing the onboard HDMI® port and the capabilities of Crimson, you can quickly deploy customized dashboards to a smart TV. Easily adapt the displays to meet your specific requirements using Crimson’s advanced programming capabilities.

Overview

The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. With advanced networking capabilities, IEC 61131 Crimson Control, support for 300+ industrial drivers, and IIoT Cloud connectors, communicate with most any brand of PLC or other equipment, and securely transmit data to wherever it is required. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need, while the diagnostic light ring offers at-a-glance insight into system operation. Powered by Crimson® 3.2, it is easy to configure secure communications or robust automation capabilities in minutes.

SOFTWARE GROUP #4

Specifications

  • Two 10/100Base-T(X) Ethernet ports
  • Two (2) isolated RS-232 serial port
  • One (1) isolated RS-485 serial ports
  • One (1) USB Host port
  • HDMI® enabled option
  • Onboard memory: 1 GB flash
  • Expansion memory: Up to 256 GB, micro SD
  • 12-24 VDC +/- 15%
  • -40 to 75 C Operating Temperature
  • UL Class 1, Div 2 Certification
  • ATEX / IECEx Certification

Additional Features

  • IP Fallback, IP Transparency, NAT, and routing capabilities
  • VPN Client/Server capabilities with certificate generation
  • 300+ industrial drivers to communicate with anything
  • Point and click connectivity to IIoT cloud platforms
  • Embedded OPC UA server and client enables seamless communication with upstream system
  • Support for any combination of communication sleds
  • Supports up to 10 I/O or PID control modules
  • Advanced Web Server with Javascript, Bootstrap, CSS and HMTL5 support delivers operations visibility anywhere
  • Three widescreen virtual HMI options for remote monitoring and control
  • Real-time data, event and security logging with cryptographic signature support
  • Use industry-standard IEC 61131 programming languages such as ladder logic, function block, structured text and instruction list
  • Intuitive diagnostic light ring for at-a-glance system status indication
  • Future-proof modular design accommodates field-installable sleds
  • 802.11 b/g/n Wi-Fi Client (with Wi-Fi Communications Sled)
  • Dual SIM 4G LTE Modem with Active GPS (with Cellular Communications Sled)
  • Dual RS-232 Serial Ports (with RS-232 Communication Sled)
  • Dual RS-485 Serial Ports (with RS-485 Communication Sled)
  • Mixed RS-232/RS-485 Serial Ports (with Mixed Serial Communication Sled)
Serial ports:2xRS232 1xRS485
Software group:Group 4 - Advanced automation controller
