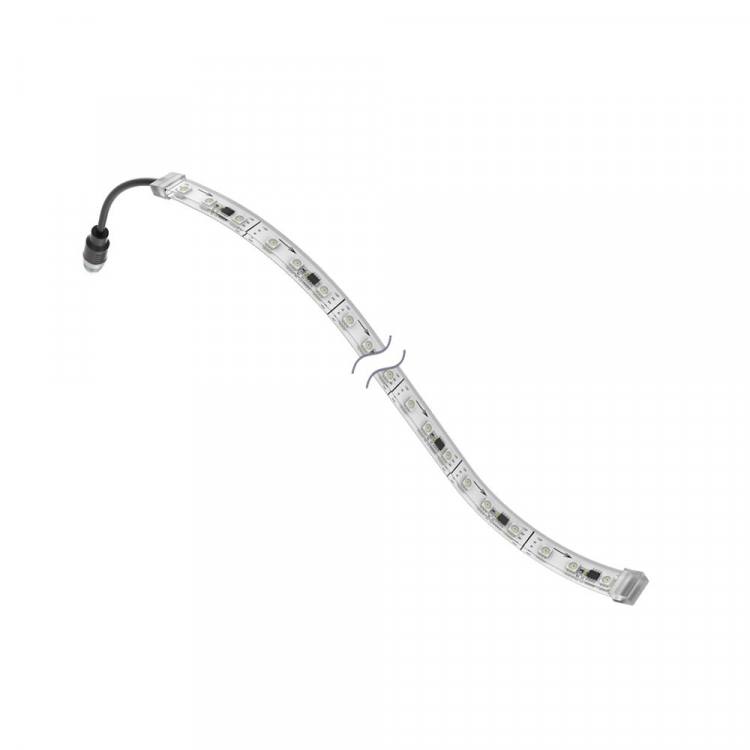

Banner WLF12PXRGB300SQP (814352) Pro flexible strip, 300mm, M12 plug
Banner WLF12PXRGB300SQP (814352) Pro flexible strip, 300mm, M12 plug
Banner WLF12PXRGB300SQP (814352) Pro flexible strip, 300mm, M12 plug
Mouse over image to zoom in
Image is for illustrative purposes only

Banner WLF12PXRGB300SQP (814352) Pro flexible strip, 300mm, M12 plug

Part: WLF12PXRGB300SQP

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
  • WLF12 Pro Flexible Strip; 300 mm
  • 12 V dc or 12-30 V dc when using LC25 LED Controller
  • IP66, IP67, IP69K
  • RGB; Clear; Non-Cascadable
  • 150 mm (6 in) 4-pin M12 PVC Pigtail QD

Power :DC
PFM Input :Yes
Cable Length (m) :0.15
Display :No
IP Rating :IP66, IP67, IP69K
Housing Style :Flexible Linear Strip
Primary Housing Material :Silicone
Indication :Yes
Mounting Thread :No Thread
Color Input Control :Multiple (One or more wires/color, enables more colors than input wires)
Number of Colors :19
Product Size (mm) :12
Color Technology :RGB Configurable
Color Option 1 :RGB
Animation Option 1 :Programmable
Connection :Pigtail QD
Quick Disconnect Type :M12
Max Current Color (mA) :250
Dimming Option :Programmable
Wire Selectable Function :Programmable
Number of Input Pins/Conductors :4
Supply Voltage :12 V dc
I/O Block Compatible :Yes
Illuminated Length (LxWxH mm) :300
Physical Dimensions (LxWxH or DxH mm) :325.0 X 12,8 X 6,4
High Temperature (up to 100° C) :45
Min Op. Temperature (°C) :-20
Storage Temp (°C) :-35 to 70
Primary Window Material :Clear Silicone
Secondary Material :VHB Tape
Feature:Washdown Rated
Audible :No
Multi-Color Device :Simultaneous Colors On
Quick Disconnect :Yes
IO Link :Yes
Pro-Editor Compatible (Discrete) :Yes
