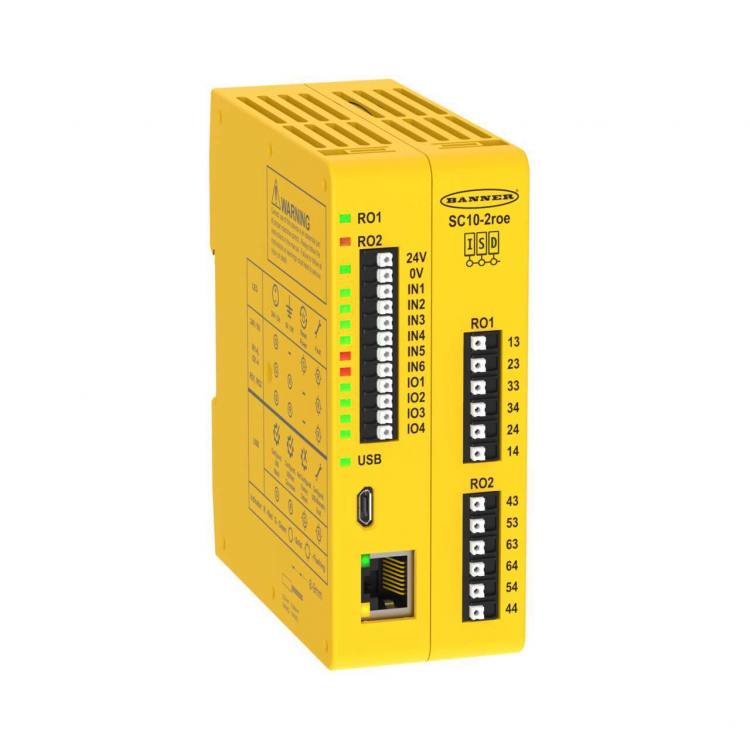

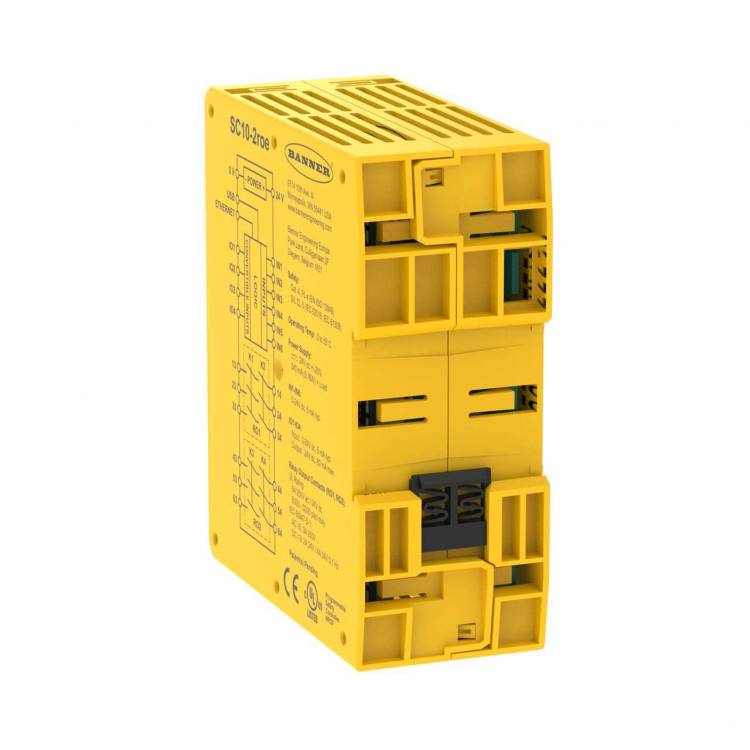

Banner SC10-2ROE (806222) Safety controller
Banner SC10-2ROE (806222) Safety controller
Mouse over image to zoom in
Image is for illustrative purposes only

Banner SC10-2ROE (806222) Safety controller

Part: SC10-2ROE
£647.50
£777.00 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads
  • Banner SC10-2ROE Safety Controller
  • ISD Compatible (2 ISD Chains) 10 Inputs 2 Relay Outputs (3 NO, 6 A each)
  • Terminal LEDs
  • 4 Convertible Inputs
  • Push-In Spring Clamp Terminals
  • 24 V dc; 240-580 mA Supply input

Power :DC
IP Rating :IP20
Device Type :Safety Controller
In-Series Diagnostics :Yes
Safety Module Type :Base Controller
LCD Display :No
Expandable :No
Dimension (H x W x D in mm) :115 x 45 x 100
Relative Humidity :90% @ 50° C
Max Operating Temperature ( °C) :55
Input Operation :Simultaneous or Concurrent
Number of Safe Inputs :10
Input Configuration :Configurable
Number of Convertible Inputs :4
Safety Input - Dual Channel (Dry Contact) :5-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State) :50 mA @ 15 - 30 V dc
Safety Input - Reset :5-50 mA @ 24 V dc
Independently Controlled Safe Outputs :2
Output Configuration :2 sets of 3 NO
Non Safe Output Configuration :Up to 4 PNP
Non Safe Output Rating :80 mA @ 24 V dc (individual) maximum; overcurrent protected
Safe Output Rating :Relay - 6 A
Splittable Safe Output :No
Mechanical Life (Operations in Millions) :20
Power Consumption :0.24 A (no load, relays on), 0.53 A (full load, relays on)
Response Time (ms) :See Software Configuration Summary
Supply Voltage :24 V dc +/- 20%
Terminal Type :Spring Clamp
Removable Terminals :No
Vibration :9-150 Hz at 1g occasional/0.5g continuous
Electrical Life (Cycles @ VA) :50,000 @ full resistive load
PL Rating :e
Safety Category Rating :4
SIL Rating :3
SISTEMA :PFHd = 5.0 x 10-10
THC Rating :IIIC
Safety Input - Single Channel :5-50 mA @ 24 V dc
Input Resistance :150 Ω max. per lead
E-Stops/Rope Pulls :Yes
Safety Mat :Yes
Motor Speed :No
Two-Hand Controls :Yes
Muting :Yes
Gate Switch (NC/NC) Input :Yes
Gate Switch (NC/NO) Input :Yes
Gate Switch (OSSD) Input :Yes
Light Curtains/Scanner with EDM Input :Yes
Light Curtains/Scanner without EDM Input :Yes
EtherNet/IP :Yes
Modbus/TCP :Yes
PCCC :Yes
PROFINET :Yes
Recovery Time :250 (typical), 400 (max)
