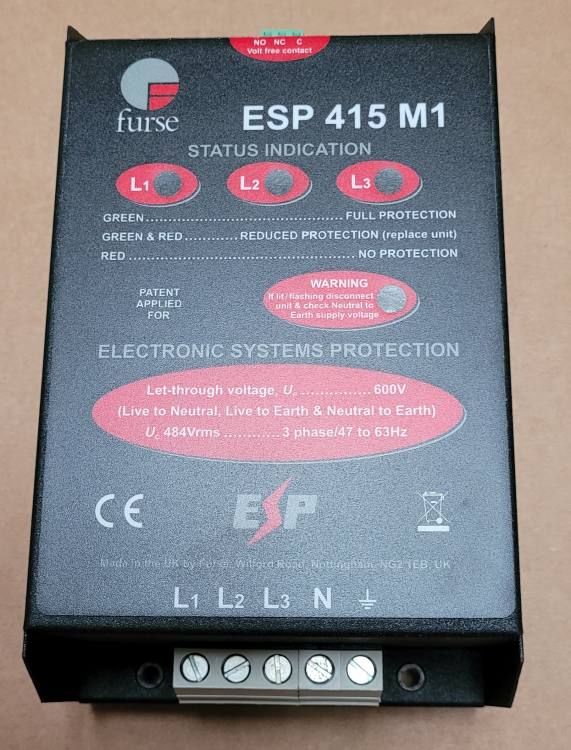

Furse 7TCA085460R0112 / ESP415M1 Surge protective device, 415V, TYPE 1+2+3 (clearance)
Furse 7TCA085460R0112 / ESP415M1 Surge protective device, 415V, TYPE 1+2+3 (clearance)
Mouse over image to zoom in
Image is for illustrative purposes only

Furse 7TCA085460R0112 / ESP415M1 Surge protective device, 415V, TYPE 1+2+3 (clearance)

Part: 7TCA085460R0112
19 in Stock
Delivered within 1-2 days
£499.00
£598.80 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Surplus stock, in original packaging.
Sold without warranty.

ABB - 7TCA085460R0112 3 PHASE SURGE PROTECTOR, 415V, TYPE 1+2+3, POWER SPD

7TCA085460R0112 / ESP 415M1

Surge Protective Device, 3 Phase,  working voltage 346-484V

This Furse, Type 1, 2 and 3 Tested, 25 kA Surge Protector has been designed to protect electrical devices from electrical voltage surges and spikes within an electrical circuit. Surge protectors are ideal for use on power distribution systems. Created to protect connected electronic equipment from transient over voltages connected to the mains supply such as computers systems, process control equipment and other valuable devices.

Versatile, this surge protector features a very low let-through voltage, with enhanced protection to IEC/BS EN 62305, between all sets of conductors ? phase to neutral, phase to earth, neutral to earth and full mode protection. The full mode designed is capable of handling partial lightning currents as well as allowing continual operation of protected equipment. This surge protectors offer an advanced pre-warning so you can stay protected with repeated protection in lightning prone environments.

This surge suppressor is easy to install in parallel within the power distribution board or directly (via fuses) on to the supply feeding equipment. At the distribution board this surge protector can be fitted either on the load side of the incoming isolator, or on the closest outgoing way to the incoming supply.

Surge Protector Features

  • Short circuit withstand current 25 kA
  • Working voltage 346-484 Volts
  • Temporary overvoltage 350 Volts
  • Very low let-through voltage between all lines (L-E, L-N, N-E)
  • LED status indication with pre-failure warning
  • Remote indication through volt-free contact
  • Conductor size 35mm2, screw terminals
  • Robust steel housing
  • Neutral to Earth voltage warning
  • Temperature range : 40 to +80 °C
  • Dimensions HxWxD : 165 x 110 x 73 mm
