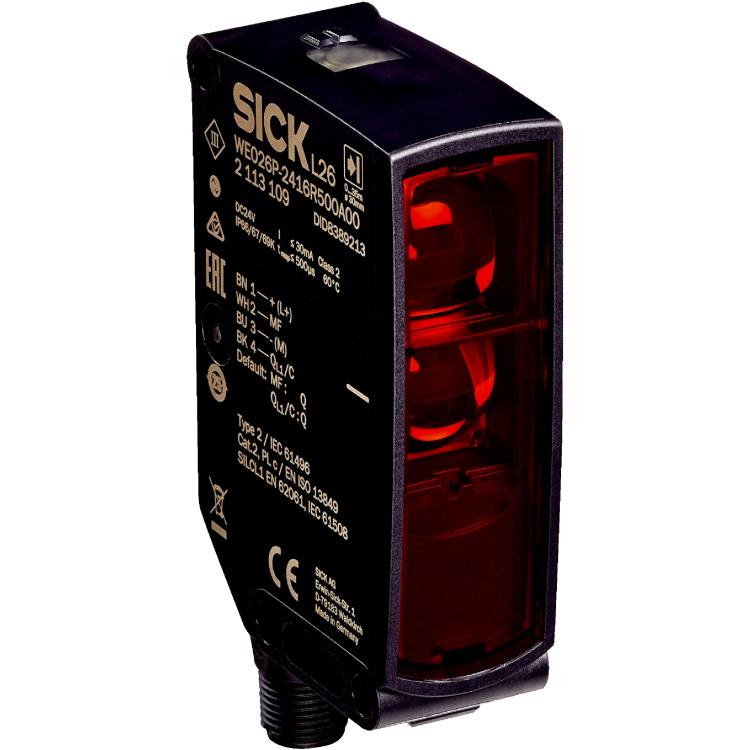

Manufacturer : | Sick |
Smart Sensor : | Diagnosis, Efficient communication, Smart Task |
Light source : | PinPoint LED |
Type of light : | Red light, visible |
Scanning range : | 50 m |
Number of beams : | 1 |
Detection capability : | 30 mm 1) A test rod with a diameter of at least 30 mm is required for thorough check. Suitable test rods are available as accessories from SICK. |
Response time : | 0.5 ms |
Response time : | 0.5 ms + Test device response time |
Cascading : | Cascading allows up to 4 single-beam photoelectric safety switches to be connected in series. You can find response times and connection diagrams for cascading in the operating instructions. |
Connection type : | Male connector M12, 4-pin, connector 270° rotatable |
Configuration method : | Via IO-Link |
Display elements : | LEDs |
Alignment aid : | Alignment quality via diagnostic LEDs. Easy and quick sensor alignment using BluePilot |
Supply voltage VS : | 24 V DC (19.2 V DC ... 28.8 V DC) |
Switching outputs : | Push–pull 1) Switching output for controlling the downstream test device, no OSSD according to IEC 61496-1. Output short-circuit protected. |
