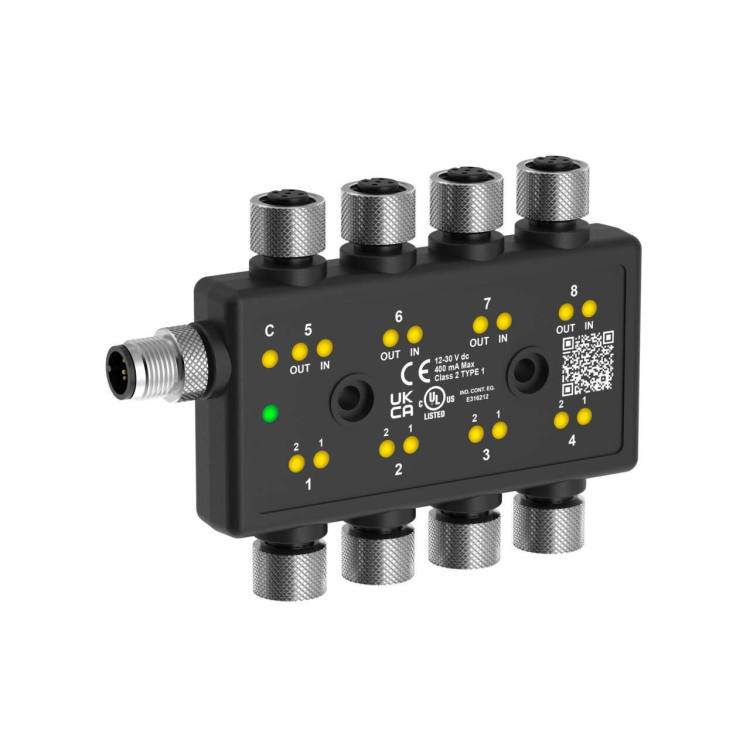

Banner R95C-4B4UI-MQ (814993) Modbus RTU 8 port hybrid I/O, 4x analog I/O & 8x discrete IN or OUT, M12 plugs
Banner R95C-4B4UI-MQ (814993) Modbus RTU 8 port hybrid I/O, 4x analog I/O & 8x discrete IN or OUT, M12 plugs
Mouse over image to zoom in
Image is for illustrative purposes only

Banner R95C-4B4UI-MQ (814993) Modbus RTU 8 port hybrid I/O, 4x analog I/O & 8x discrete IN or OUT, M12 plugs

Part: R95C-4B4UI-MQ
£373.33
£448.00 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Features:

  • Compact Modbus® device converter with the ability to send 4 ports of discrete input and 4 ports of analog input data (voltage or current)
  • This Modbus converter can also output discrete values and analog outputs (voltage or current) through any of the respective sets of 4 ports
  • 2-Channel Discrete Features:
    • Enabled Delay Modes: ON/OFF Delay, ON/OFF One-shot, ON/OFF Retriggerable One-shot, ON/OFF Pulse-stretcher and Totalizer
    • Measurement Metrics: Count, Counts Per Minute (CPM), and Duration
    • Discrete input/output can be independently configured as NPN or PNP
    • Discrete Mirroring: Discrete signals (In/Out) from the four discrete ports can be mirrored to any of the output channels of the four discrete ports
  • Analog In/Out Features:
    • Analog Out Mirroring: The analog input from all four analog ports can be mirrored as an output to any of the four analog ports
    • PFM Output: The analog input from all four analog ports can be mirrored as PFM outputs to any of the four discrete ports.
  • Rugged overmolded design meets IP65, IP67, and IP68
  • Connects directly to a sensor or anywhere in-line for ease of use
  • R95C Modbus hubs are a quick, easy, and economical way to integrate non-Modbus devices into a Modbus system

Function :Analog to Modbus RTU converter
Form Factor :R95
Analog Inputs :Current (0-20mA) or Analog Voltage (0-10V)
Analog Outputs:Current (0-20mA) or Analog Voltage (0-10V)
Discete Inputs :Bimodal (NPN/PNP)
Discete Outputs :Bimodal (NPN/PNP)
Connector :Integral M12 4-pin female
Modbus Server :Yes
Output :Modbus RTU RS485, Banner 1-wire
Connector :Integral M12 5-pin male
Voltage :18 to 30 V dc
Current :<400 mA
Device Size (mm) :50 x 95
IP Rating :IP65, IP67, IP68
