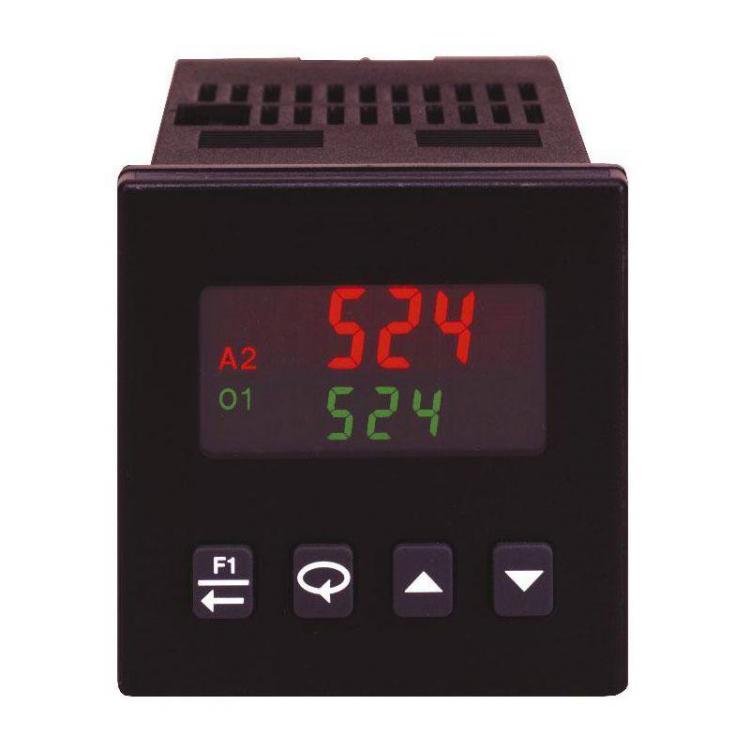

Red Lion P16 PID controller 1/16 DIN

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Parts:
P1611100: OP1+AL1+AL2 rly, 85-250Vac
P1611110: OP1+AL1+AL2 rly, 18-36Vdc/24Vac
P1621100: OP1 logic/ssr, AL1+AL2 rly, 85-250Vac
P1621110: OP1 logic/ssr, AL1+AL2 rly, 18-36Vdc/24V
P1641100: Analogue OP, AL1+AL2 rly, 85-250Vac
P1641110: Analogue OP, AL1+AL2 rly, 18-36Vdc/24Vac
TP16KIT1: Software, comms module, 115Vac power adapter
TP16KIT2: Software, comms module, DC user supply

Red Lion Controls - USA
 P16 PID Process Controller

Note: Red Lion have issued an End of Line (EOL) notice. Please read this notice and call us before ordering this product.


Size  1/16 DIN (48x48mm)
Display

 2 line by 4 Digit LCD with backlighting
 Top line (Red) - Process value 0.3" (7.6mm)
 Bottom line (Green) - Parameters  0.2" (5.1mm)

Input

 0-10V and 0/4-20mA Signals

Supply voltage  85-250Vac models
 18-36Vdc/24Vac
Outputs  Relay, Logic/SSR drive and analog
 Check datasheet for models
Protection  NEMA 4X/IP65
Other features  PID Control with Reduced Overshoot
 On Demand Auto-Tuning of PID Settings
 Programmable Function Key and User input
 PC or Front Panel Programming
 PC Configurable with TP16KIT
