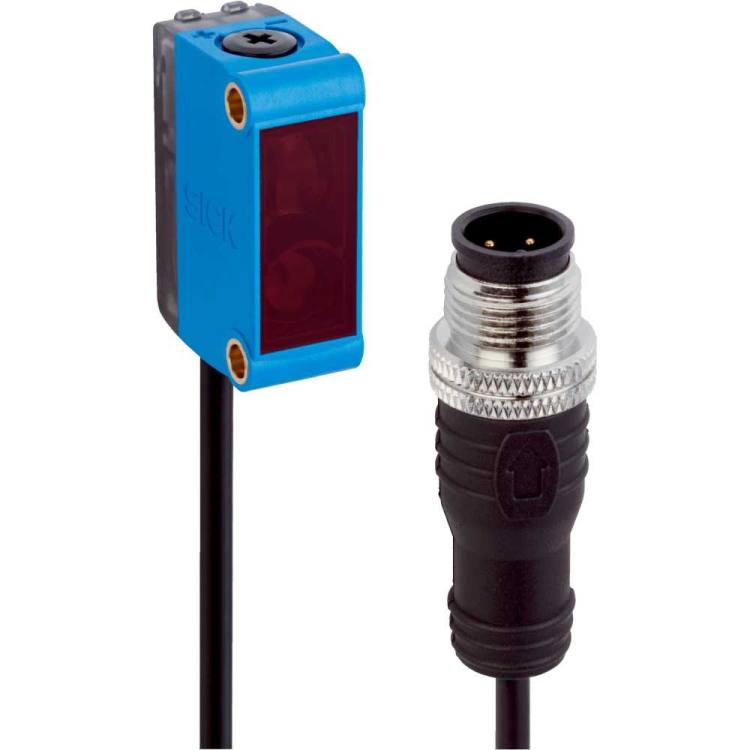

Sick GL6L-P7211 (1122644) Retro-reflective 12m, PNP, M12 pigtail, laser

Part: 1122644
£175.96
£211.15 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns

Manufacturer :SICK - Germany
Functional principle :Photoelectric retro-reflective sensor
Object distance (min.) :80mm
Object distance (max.) :12m
Switching output detail :PNP
Number of digital outputs :1
Connection type :cable with male connector
Connection type detail :Cable with M12 male connector, 4-pin
Length of cable :300mm
Cable material detail :PVC
Enclosure rating :IP67
Type of light :visible red light
Light source :laser
Light source detail :laser
Shape of light spot :Point-shaped
Light spot size :Ø 3.5 mm (1000 mm)
Smallest detectable object (MDO) typ. :3.5 mm
Adjustment :Potentiometer
Setting Method :For setting the sensing range, for inverting the switching function (light/dark switching)
Dimensions (L, D, W) :31.5mm x 21mm x 12mm
Housing material :plastic
Housing material detail :ABS
Ambient operation temp. min :-20 °C
Ambient operation temp. max :50 °C
MTTFD :1005 a
Function of pin 4/black (BK) :Digital output, object present, output, LOW
Function of pin 4/black (BK) – detail :Digital output, light switching, object present = output Q LOW
Switching frequency :1000 Hz
Response time :≤ 625 µs
Task :Detecting - Standard objects, Monitoring and controlling - Quality
