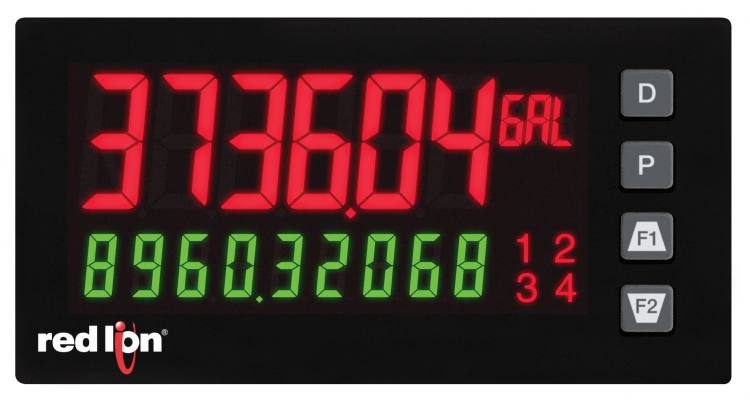

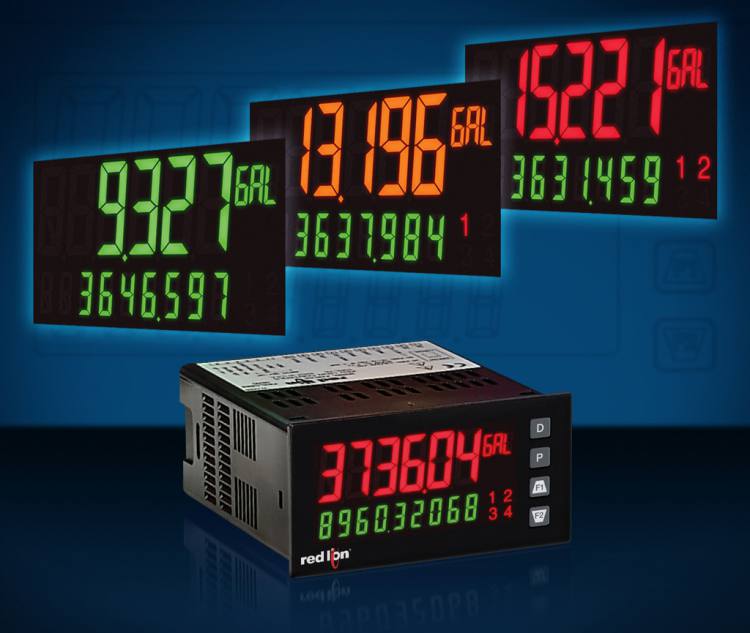

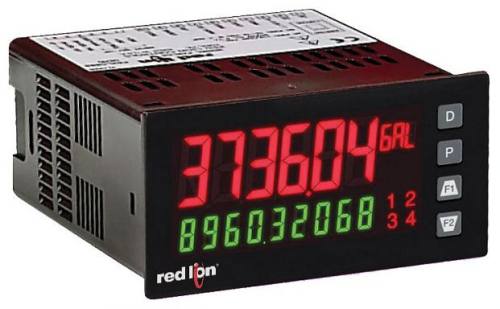

Red Lion PAX2A000 Dual line process meter
Red Lion PAX2A000 Dual line process meter
Red Lion PAX2A000 Dual line process meter
Mouse over image to zoom in
Image is for illustrative purposes only

Red Lion PAX2A000 Dual line process meter

Part: PAX2A000
In stock - UK next day delivery
£360.00
£432.00 (Inc VAT)
Seen it cheaper?
QTY:
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589 015

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads

Manufacturer:Red Lion Controls - USA
Part number:PAX2A000
Description:Dual line process meter, expandable with additional modules (see accessories)
Size:1/8 DIN (50 mm x 97 mm)
Display:Positive image LCD
Top Line:6- digit, 0.71" (18 mm) tri-color backlight (red, green or orange)
     Display range:-199,999 to 999,999
Bottom Line:9 digit, 0.35" (8.9 mm) green backlight
     Display range:-199,999,999 to 999,999,999
Signal input:
    Current:Five DC current ranges, up to 2A
    Voltage:Six DC voltage ranges, up to 200V
    Thermocouple:T, E, J, K, R, S, B, N and C
    RTD:PT100
    Resistance:100ohm, 1K ohm and 10K ohm
Supply voltage:50-250Vac and 21.6-250Vdc
Outputs:Up to Four Setpoint Alarm Outputs. Relay or transistor modules. Analog output module (see accessories)
Communications:RS232, RS485, MODBUS, DeviceNet, Profibus (see accessories)
Protection:NEMA 4X/IP65
Other features:Simple scaling method. 16 point scaling for non-linear inputs. Programmable Decimal point. Totaliser/intergrator. Adjustable display update times. Tranducer excitation power. Min/max display. Programmable Function Keys/User inputs. PC Software Available for Meter Configuration (requires serial module).
