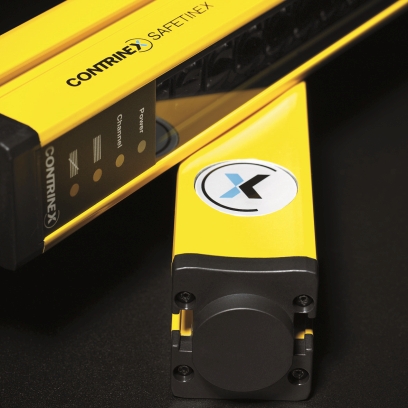

The Safetinex safety light curtains and access control barriers from Contrinex, correspond to safety category 4 according to ISO 13849-1 (former EN 954-1) as well as type 4 according to IEC 61496-1 and -2.
The range comprises models with resolutions of 14 mm (YBB14) for finger protection and 30 mm (YBB30) for hand protection as well as access control barriers (YCA) with 3 to 6 beams and beam gaps of 300, 400 or 500 mm. All types offer a choice between two channels and are “designed to cost”, thus offering top quality at attractive prices.
The product range also includes device and mirror columns enabling multi-sided safeguarding of danger zones with only two safety devices.
Connection is via M12 or M26 connector, short cable (pigtail) with M12 connector or PUR cable, up to 10 m long. In addition, the product range includes a safety relay of safety category 4 for manual or automatic restart as well as fixing elements. Safetinex safety light curtains are "designed to cost" and thus offer top quality at attractive prices.
