Manufacturer : | Red Lion Controls - USA |
Part number : | PX2C8V00 Use PX2CVR00 for new designs. |

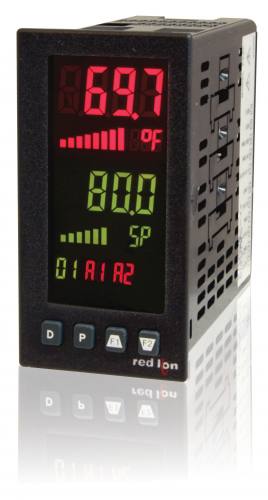

Description : | Dual line PID controller (vertical). Expandable with additional modules (see accessories) |
Size : | 1/8 DIN (50 mm x 97 mm) vertical |
Display : | Negative image LCD with tri-color backlight |
: | The display is divided into seven independently programmable color zones: |
: | Line 1, Line 2, Universal Annunciators (1-4) & Mnemonics |
: | Line 1 and 2 4 digits each line |
Display Range : | -1999 to 9999 |
Display Units : | Programmable 3 digit units annunciator |
Bar Graph : | Programmable 8 segment bar graph |
Universal Annunciator 1 thru 4 : | Programmable 2 digit annunciator |
Vertical Model Digit Size : | Line 1 - 0.51" (13 mm). Line 2 - 0.44" (11.2 mm) |
Signal input : | Universal DC current/voltage, Thermocouple, PT100 and resistance |
: | Five DC current ranges, up to 2A |
: | Six DC voltage ranges, up to 200V |
: | Thermocouple, T, E, J, K, R, S, B, N and C |
: | RTD PT100 |
: | Resistance, 100ohm, 1K ohm and 10K ohm |
Supply voltage : | 40-250Vac and 21.6-250Vdc |
Outputs : | Up to Four Setpoint/Alarm outputs. Upto 16 alarms with boolean logic. |
: | Relay or transistor modules |
: | Analog output module, 10Vdc or 20mA (see accessories) |
Communications : | RS232, RS485, MODBUS, DeviceNet, Profibus (see accessories) |
Protection : | NEMA 4X/IP65 |
Other features : | Simple scaling method. |
: | 16 point scaling for non-linear inputs |
: | Programmable Decimal point |
: | Totaliser/intergrator |
: | Adjustable display update times |
: | Tranducer excitation power |
: | Min/max display |
: | Programmable Function Keys/User inputs |
: | PC Software Available for Meter Configuration via USB |
Downloads : | PAX2C information downloads. Crimson 2.1 configuration software. |
