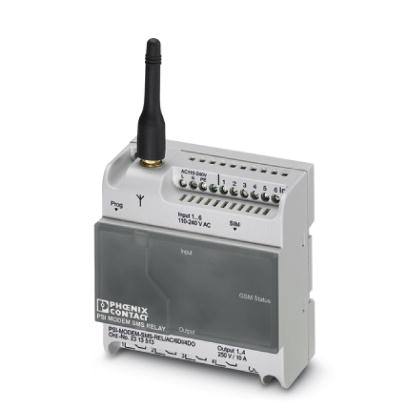

Phoenix Contact SMS alarm relay 2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC
Phoenix Contact SMS alarm relay 2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC
Phoenix Contact SMS alarm relay 2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC
Phoenix Contact SMS alarm relay 2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC
Mouse over image to zoom in
Image is for illustrative purposes only

Phoenix Contact SMS alarm relay 2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC

Part: 2313520

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads
Phoenix Contact - Germany
2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC
This product is no longer available. Please call for alternative product.

SMS remote control and signaling system for mounting on EN DIN rail.

Six digital or configurable analog/digital inputs and four relay outputs with PDT contacts are monitored and controlled using SMS messages via any GSM mobile phone network.

The integrated phonebook stores up to 50 numbers that are to receive the SMS messages.

Each change of status at the input sends a user-defined message to the selected receivers via SMS. A predefined message can be used to enable and disable the outputs via SMS. In this way, an error can be acknowledged and even removed remotely.

The status of all inputs and outputs can be requested via SMS or sent periodicaly.

Download: Free SMS-REL-CONF software (Links to the Phoenix Contact download site)

Interface GSM 850, 900, 1800, 1900MHz
Supply voltage 12-48Vdc
Current consumption 15mA for 24Vdc
Signal outputs 4 relay outputs.
Signal inputs 6 analogue (0-10Vdc) or digital (on/off) configurable.
Analogue inputs can be scaled.
Connection Screw terminals, D-SUB 9 for PC connection
Dimensions W/H/L 88/60/90mm
