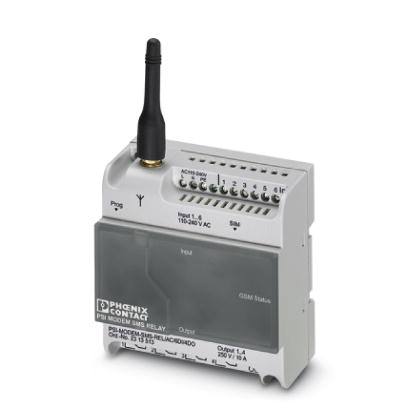

Phoenix Contact SMS alarm relay 2313513 PSI-MODEM-SMS-REL/6 DI/4DO/AC

Part: 2313513

we accept all major cards

cards we accept
01482 589 015
Need help with this order?
For all enquiries, please contact us on:
Description
Delivery & Returns
Downloads
Phoenix Contact - Germany
2313513 PSI-MODEM-SMS-REL/6 DI/4DO/AC
This product is no longer available. Please call for alternative product.

SMS remote control and signaling system for mounting on EN DIN rail.

Six digital inputs and four relay outputs with PDT contacts are monitored and controlled using SMS messages via any GSM mobile phone network.

The integrated phonebook stores up to 50 numbers that are to receive the SMS messages.

Each change of status at the input sends a user-defined message to the selected receivers via SMS. A predefined message can be used to enable and disable the outputs via SMS. In this way, an error can be acknowledged and even removed remotely.

The status of all inputs and outputs can be requested via SMS or sent periodicaly.

Download: Free SMS-REL-CONF software (Links to the Phoenix Contact download site)

Interface GSM 850, 900, 1800, 1900MHz
Supply voltage 110V-240Vac
Current consumption 10mA for 230Vac
Signal outputs 4 relay outputs.
Signal inputs 6 digital (on/off) configurable.
Connection Screw terminals, D-SUB 9 for PC connection
Dimensions W/H/L 88/60/90mm
