Rechner ATEX inductive sensors
The Rechner series 10 inductive 3-wire proximity sensors with digital output pnp with NO or NC-function. Electronic circuits, PLC‘s, relays and our power supplies of series 130 can be directly activated. Analogue sensors with 4...20 mA output are also available. The operating range of these analogue sensors is adjustable by means of a potentiometer and they can be actuated by analogue interfaces with internal resistance Ri ≤300 ohm. The sensors are reverse polarity protected, overload protected and have electronic short-circuit protection. StEx-Sensors for use in Zone 20 with ATEX-certificate complete this series.
The Rechner series 20 inductive 3-wire proximity sensors with digital output npn with NO or NC-function. Electronic circuits, PLC‘s, relays and our power supplies of series 130 can be directly activated. The sensors are reverse-polarity protected, overload-protected and have electronic short-circuit protection. StEx-Sensors for use in Zone 20 with ATEX-certificate complete this series.

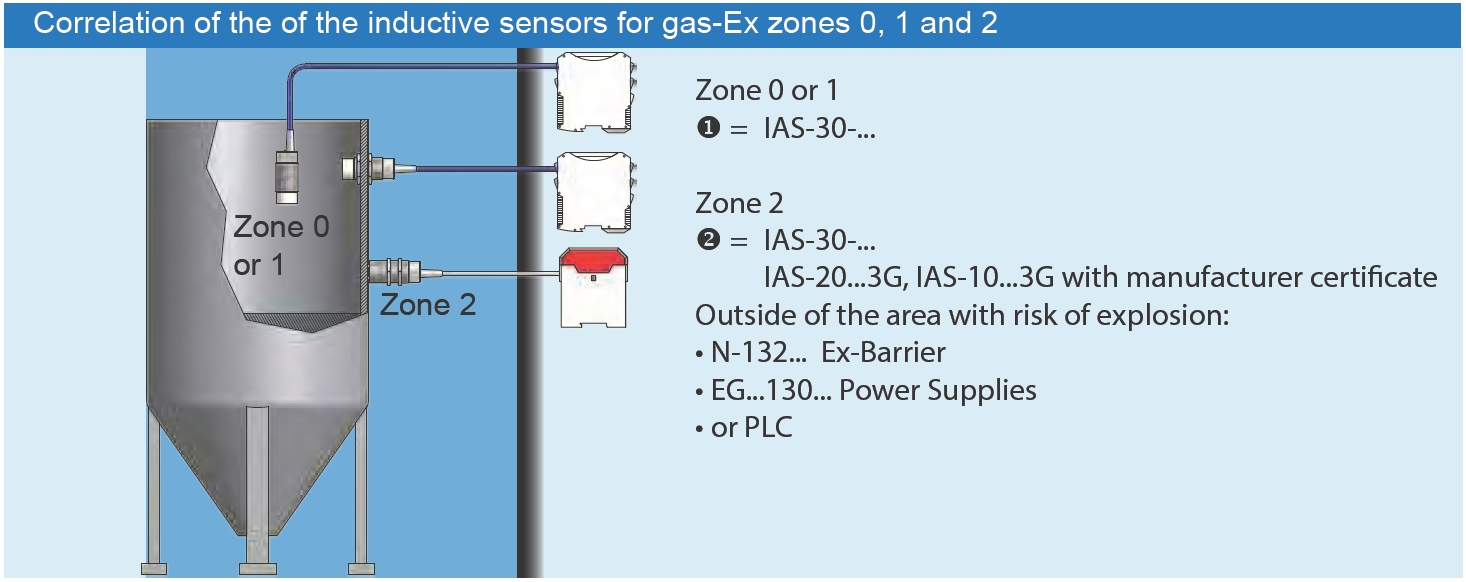

The Rechner series 30 contains inductive 2-wire proximity signal generators according to NAMUR DIN 60947-5-6. These sensors can be mounted in explosion hazardous areas when they are connected to approved isolating switching amplifiers with intrinsically safe control circuits. [Ex ia] or [Ex ib], our series N-132... Depending
on which isolating switching amplifier is used the NAMUR-sensors of this series can be used up to zone 0. The data specified in the certificate of conformity of the isolating switching amplifier used must be taken into
consideration. StEx-Sensors for use in Zone 20 with ATEX-certificate complete this series.
Mouse over image or click to zoom in.
Downloads
- Instruction manual for inductive (IAS) and capacitive (KAS) sensors according to ATEX. Supplement No. 1 to the instruction manual for IAS... and KAS... (239K)
- Instruction manual for IAS-... / KAS...3D according to ATEX Supplement No. 2 to the instruction manual for IAS..., KAS... (263K)
- Capacitive sensors according to ATEX Addition No.1 (239K)
Found 44 items
