Red Lion N-Tron NT100 series unmanaged Ethernet switches
Red Lion have released a rugged compact 16-Port unmanaged industrial ethernet switch as part of their NT100 ethernet switch platform.

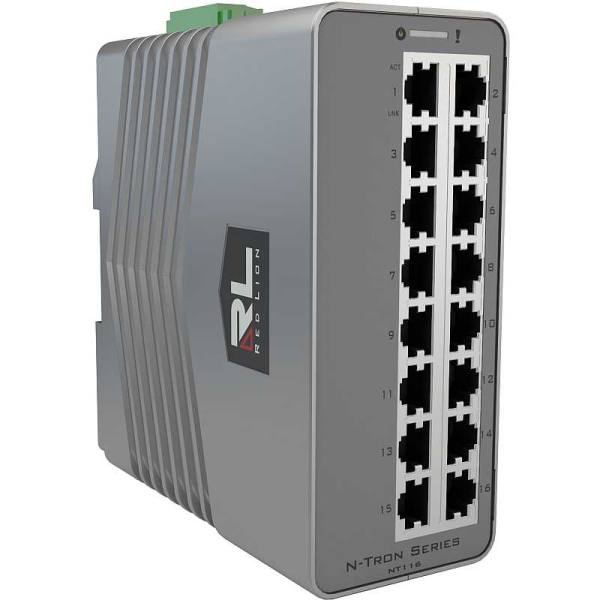

The compact N-Tron® NT116 unmanaged Ethernet switch is designed for use in industrial applications that demand dependable performance under harsh conditions.
![Red Lion NT116 approval logos. Red Lion NT116 approval logos.](/files/nt116-approvals-475x67.jpg)
NT116 standard features include:
- Sixteen 10/100BaseTX RJ45 ports
- Redundant 10-49 VDC power inputs
- Compact, space saving hardened industrial design
- -40 °C to 85 °C operating temperature
- Reverse Polarity Protection
- ESD and surge protection
- High shock and vibration tolerance
- IEEE 802.3 compliance
- Full wire speed communication
- Auto-sensing speed and flow control
- Jumbo frame support
- Field installable panel mount option
Certification & Compliance:
- Product Safety: UL 61010 and C22.2 No. 61010 OrdLoc, UL 121201 and CSA C22.2 No. 213 Class I, Division 2 HazLoc, ATEX, IECEx Ex ec IIC T4 Gc, IECEx UL 23.0092X and UL 23 ATEX 3128X
- EMI/EMC: CFR 47, Part 15, Subpart B, Canada ICES-003, ANSI C63.4, EN 61000-6-2 and 4, IEC 61000-4-2, 3, 4, 5, 6 and 8
- Shock & Vibration (panel mounted): IEC 68-2-27: 200 g @ 10 ms Triaxial, non-operational; IEC 68-2-6: 15 g @ 5-200 Hz Triaxial, operational
- Railway/Rolling Stock: EN 50155, EN 50121 and EN 61373
- Marine: ABS Type Approval for Shipboard Applications
- Designed to Comply with: IEEE 1613 for Electric Utility Substations and NEMA TS1/TS2 for Traffic Control
- Other: RoHS compliant
Mouse over image or click to zoom in.
Downloads
Found 1 items
£441.00(£529.20 Incl VAT)
In stock - UK next day delivery
