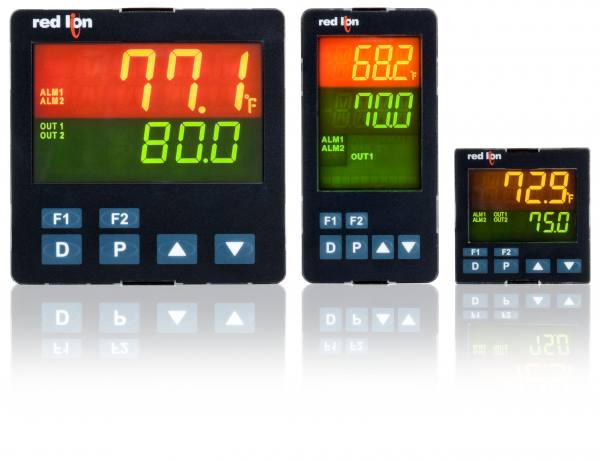

Red Lion PXU PID controllers
Red Lion Controls adds small form-factor PID controllers to its industrial automation portfolio with the availability of the PXU series. Designed for machine builders, systems integrators and commercial equipment manufacturers, the PXU series enables tighter, more reliable control over a wide range of processes, including temperature, flow and pressure, from a single model.
Capable of being deployed in precision process applications within the food and beverage, plastics, packaging, energy, gas, heat-treating, commercial and medical industries, the PXU series offers 1/16, 1/8 and 1/4 DIN size models to provide a range of space-saving options. Programming is also easy using front panel push-buttons and/or Red Lion’s Crimson 2.1® configuration software coupled with on demand auto-tuning.
What’s New?
- Enhanced Bezel Design
- One Inch Shorter in Depth
- Universal Temperature and Process Inputs
Enhanced Bezel Design
Reading the display on controllers can be difficult even under the best of conditions. The PXU features an enhanced bezel design including a larger dual-line, easy-to-read display that allows for better visibility from long distances.
One Inch Shorter in Depth
Available space to mount controllers is a constant challenge for today’s manufacturing and process environments. Offered in 1/16, 1/8 and 1/4 DIN sizes, the PXU is a full inch shorter to save valuable panel space.
Universal Temperature and Process Inputs
Selecting the right PID controller is not always easy, especially when deployed in a range of applications. The PXU offers universal temperature and process inputs to simplify the decision. Additional support for thermocouple, RTD, VDC and current inputs in a single model makes the PXU a comprehensive choice for most applications.
Mouse over image or click to zoom in.
Found 93 items
Red Lion PXU11A20 PID controller 1/16 DIN 48x48mm, AC, OP1: Relay, OP2: Relay, USR: 2, RS485
£131.00(£157.20 Incl VAT)
Red Lion PXU11A30 PID controller 1/8 DIN 96x48mm, AC, OP1: Relay, OP2: Relay, USR: 2, RS485
£143.00(£171.60 Incl VAT)
Red Lion PXU11A50 PID controller 1/4 DIN 96x96mm, AC, OP1: Relay, OP2: Relay, USR: 2, RS485
£165.00(£198.00 Incl VAT)
Red Lion PXU11AB0 PID controller 1/16 DIN 48x48mm, DC, OP1: Relay, OP2: Relay, USR: 2, RS485
£136.00(£163.20 Incl VAT)
Red Lion PXU11AC0 PID controller 1/8 DIN 96x48mm, DC, OP1: Relay, OP2: Relay, USR: 2, RS485
£148.00(£177.60 Incl VAT)
Red Lion PXU11AE0 PID controller 1/4 DIN 96x96mm, DC, OP1: Relay, OP2: Relay, USR: 2, RS485
£169.00(£202.80 Incl VAT)
Red Lion PXU11B20 PID controller 1/16 DIN 48x48mm, AC, OP1: Relay, OP2: Relay, USR: 1, CT in, RS485
£146.00(£175.20 Incl VAT)
Red Lion PXU11B30 PID controller 1/8 DIN 96x48mm, AC, OP1: Relay, OP2: Relay, USR: 1, CT in, RS485
£161.00(£193.20 Incl VAT)
Red Lion PXU11BB0 PID controller 1/16 DIN 48x48mm, DC, OP1: Relay, OP2: Relay, USR: 1, CT in, RS485
£150.00(£180.00 Incl VAT)
Red Lion PXU11BC0 PID controller 1/8 DIN 96x48mm, DC, OP1: Relay, OP2: Relay, USR: 1, CT in, RS485
£166.00(£199.20 Incl VAT)
Red Lion PXU11D20 PID controller 1/16 DIN 48x48mm, AC, OP1: Relay, OP2: Relay, USR: 1, Remote, RS485
£134.00(£160.80 Incl VAT)
Red Lion PXU11D30 PID controller 1/8 DIN 96x48mm, AC, OP1: Relay, OP2: Relay, USR: 1, Remote, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU11DB0 PID controller 1/16 DIN 48x48mm, DC, OP1: Relay, OP2: Relay, USR: 1, Remote, RS485
£137.00(£164.40 Incl VAT)
Red Lion PXU11DC0 PID controller 1/8 DIN 96x48mm, DC, OP1: Relay, OP2: Relay, USR: 1, Remote, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU21A20 PID controller 1/16 DIN 48x48mm, AC, OP1: SSR, OP2: Relay, USR: 2, RS485
£131.00(£157.20 Incl VAT)
Red Lion PXU21A30 PID controller 1/8 DIN 96x48mm, AC, OP1: SSR, OP2: Relay, USR: 2, RS485
£143.00(£171.60 Incl VAT)
Red Lion PXU21AB0 PID controller 1/16 DIN 48x48mm, DC, OP1: SSR, OP2: Relay, USR: 2, RS485
£136.00(£163.20 Incl VAT)
Red Lion PXU21AC0 PID controller 1/8 DIN 96x48mm, DC, OP1: SSR, OP2: Relay, USR: 2, RS485
£148.00(£177.60 Incl VAT)
Red Lion PXU21B20 PID controller 1/16 DIN 48x48mm, AC, OP1: SSR, OP2: Relay, USR: 1, CT in, RS485
£146.00(£175.20 Incl VAT)
Red Lion PXU21B30 PID controller 1/8 DIN 96x48mm, AC, OP1: SSR, OP2: Relay, USR: 1, CT in, RS485
£161.00(£193.20 Incl VAT)
Red Lion PXU21BB0 PID controller 1/16 DIN 48x48mm, DC, OP1: SSR, OP2: Relay, USR: 1, CT in, RS485
£150.00(£180.00 Incl VAT)
Red Lion PXU21BC0 PID controller 1/8 DIN 96x48mm, DC, OP1: SSR, OP2: Relay, USR: 1, CT in, RS485
£166.00(£199.20 Incl VAT)
Red Lion PXU21BE0 PID controller 1/4 DIN 96x96mm, DC, OP1: SSR, OP2: Relay, USR: 1, CT in, RS485
£180.00(£216.00 Incl VAT)
Red Lion PXU21C30 PID controller 1/8 DIN 96x48mm, AC, OP1: SSR, OP2: Relay, USR: 1, 2nd analog OP, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU21CC0 PID controller 1/8 DIN 96x48mm, DC, OP1: SSR, OP2: Relay, USR: 1, 2nd analog OP, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU21CE0 PID controller 1/4 DIN 96x96mm, DC, OP1: SSR, OP2: Relay, USR: 1, 2nd analog OP, RS485
£168.00(£201.60 Incl VAT)
Red Lion PXU21D20 PID controller 1/16 DIN 48x48mm, AC, OP1: SSR, OP2: Relay, USR: 1, Remote, RS485
£134.00(£160.80 Incl VAT)
Red Lion PXU21D30 PID controller 1/8 DIN 96x48mm, AC, OP1: SSR, OP2: Relay, USR: 1, Remote, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU21DB0 PID controller 1/16 DIN 48x48mm, DC, OP1: SSR, OP2: Relay, USR: 1, Remote, RS485
£137.00(£164.40 Incl VAT)
Red Lion PXU21DC0 PID controller 1/8 DIN 96x48mm, DC, OP1: SSR, OP2: Relay, USR: 1, Remote, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU21DE0 PID controller 1/4 DIN 96x96mm, DC, OP1: SSR, OP2: Relay, USR: 1, Remote, RS485
£168.00(£201.60 Incl VAT)
Red Lion PXU31A20 PID controller 1/16 DIN 48x48mm, AC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£131.00(£157.20 Incl VAT)
Red Lion PXU31A30 PID controller 1/8 DIN 96x48mm, AC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£143.00(£171.60 Incl VAT)
Red Lion PXU31A50 PID controller 1/4 DIN 96x96mm, AC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£165.00(£198.00 Incl VAT)
Red Lion PXU31AB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£136.00(£163.20 Incl VAT)
Red Lion PXU31AC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£148.00(£177.60 Incl VAT)
Red Lion PXU31AE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 20mA, OP2: Relay, USR: 2, RS485
£169.00(£202.80 Incl VAT)
Red Lion PXU31B20 PID controller 1/16 DIN 48x48mm, AC, OP1: 20mA, OP2: Relay, USR: 1, CT in, RS485
£146.00(£175.20 Incl VAT)
Red Lion PXU31B30 PID controller 1/8 DIN 96x48mm, AC, OP1: 20mA, OP2: Relay, USR: 1, CT in, RS485
£161.00(£193.20 Incl VAT)
Red Lion PXU31BB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 20mA, OP2: Relay, USR: 1, CT in, RS485
£150.00(£180.00 Incl VAT)
Red Lion PXU31BC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 20mA, OP2: Relay, USR: 1, CT in, RS485
£166.00(£199.20 Incl VAT)
Red Lion PXU31BE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 20mA, OP2: Relay, USR: 1, CT in, RS485
£180.00(£216.00 Incl VAT)
Red Lion PXU31D20 PID controller 1/16 DIN 48x48mm, AC, OP1: 20mA, OP2: Relay, USR: 1, Remote, RS485
£134.00(£160.80 Incl VAT)
Red Lion PXU31D30 PID controller 1/8 DIN 96x48mm, AC, OP1: 20mA, OP2: Relay, USR: 1, Remote, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU31DB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 20mA, OP2: Relay, USR: 1, Remote, RS485
£137.00(£164.40 Incl VAT)
Red Lion PXU31DC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 20mA, OP2: Relay, USR: 1, Remote, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU31DE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 20mA, OP2: Relay, USR: 1, Remote, RS485
£168.00(£201.60 Incl VAT)
Red Lion PXU41A20 PID controller 1/16 DIN 48x48mm, AC, OP1: 10V, OP2: Relay, USR: 2, RS485
£131.00(£157.20 Incl VAT)
Red Lion PXU41A50 PID controller 1/4 DIN 96x96mm, AC, OP1: 10V, OP2: Relay, USR: 2, RS485
£165.00(£198.00 Incl VAT)
Red Lion PXU41AB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 10V, OP2: Relay, USR: 2, RS485
£136.00(£163.20 Incl VAT)
Red Lion PXU41AE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 10V, OP2: Relay, USR: 2, RS485
£169.00(£202.80 Incl VAT)
Red Lion PXU41B20 PID controller 1/16 DIN 48x48mm, AC, OP1: 10V, OP2: Relay, USR: 1, CT in, RS485
£146.00(£175.20 Incl VAT)
Red Lion PXU41B30 PID controller 1/8 DIN 96x48mm, AC, OP1: 10V, OP2: Relay, USR: 1, CT in, RS485
£161.00(£193.20 Incl VAT)
Red Lion PXU41BB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 10V, OP2: Relay, USR: 1, CT in, RS485
£150.00(£180.00 Incl VAT)
Red Lion PXU41BC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 10V, OP2: Relay, USR: 1, CT in, RS485
£166.00(£199.20 Incl VAT)
Red Lion PXU41BE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 10V, OP2: Relay, USR: 1, CT in, RS485
£180.00(£216.00 Incl VAT)
Red Lion PXU41C30 PID controller 1/8 DIN 96x48mm, AC, OP1: 10V, OP2: Relay, USR: 1, 2nd analog OP, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU41CC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 10V, OP2: Relay, USR: 1, 2nd analog OP, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU41CE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 10V, OP2: Relay, USR: 1, 2nd analog OP, RS485
£168.00(£201.60 Incl VAT)
Red Lion PXU41D20 PID controller 1/16 DIN 48x48mm, AC, OP1: 10V, OP2: Relay, USR: 1, Remote, RS485
£134.00(£160.80 Incl VAT)
Red Lion PXU41D30 PID controller 1/8 DIN 96x48mm, AC, OP1: 10V, OP2: Relay, USR: 1, Remote, RS485
£151.00(£181.20 Incl VAT)
Red Lion PXU41DB0 PID controller 1/16 DIN 48x48mm, DC, OP1: 10V, OP2: Relay, USR: 1, Remote, RS485
£137.00(£164.40 Incl VAT)
Red Lion PXU41DC0 PID controller 1/8 DIN 96x48mm, DC, OP1: 10V, OP2: Relay, USR: 1, Remote, RS485
£155.00(£186.00 Incl VAT)
Red Lion PXU41DE0 PID controller 1/4 DIN 96x96mm, DC, OP1: 10V, OP2: Relay, USR: 1, Remote, RS485
£168.00(£201.60 Incl VAT)
