Sick deTem4 Core & deTem2 Core access protection safety devices

Access protection made easy and efficient with Sick's deTem4 Core & deTem2 Core access protection safety devices.

The Sick deTem4 Core and deTem2 Core multiple light beam safety devices, with 2, 3, or 4 beams as per the sender/receiver principle, provide simple and reliable protection when accessing hazardous machine areas. The small housing already typical of deTec devices saves space and can be easily integrated using tried-and-tested brackets and standardized connectivity products. Despite the small dimensions, the sensor can achieve a scanning range of up to 90 m and therefore enables multi-sided access protection with deflector mirrors.

Mouse over image or click to zoom in.

Product details at a glance:

Typical scanning range of up to 90 m
2 versions: small and wide scanning range
Compact design
The same housing as deTec
Versions with 2, 3, and 4 light beams
Ambient operating temperature of –30 °C to +55 °C
Enclosure ratings IP65 and IP67

Areas of applications:

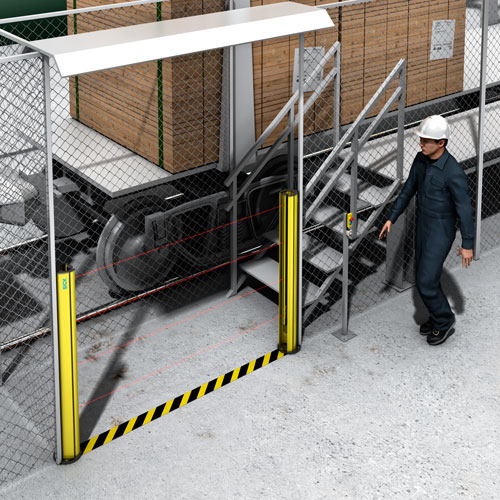

Single-sided access protection

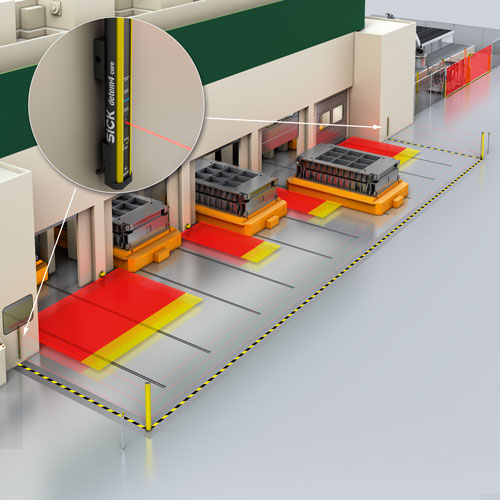

Multi-sided access protection
Key industries: machine building, intralogistics

Technical data overview:

Product :	Sick deTec2 Core
Type :	Type 2 (IEC 61496-1)
Safety integrity level :	SIL1 (IEC 61508), SILCL1 (IEC 62061)
Performance level :	PL c (ISO 13849-1)
Number of beams :	2 / 3 / 4
Beam separation or resolution :	500 mm / 400 mm / 300 mm
Enclosure rating :	IP65 (IEC 60529), IP67 (IEC 60529)

Product :	Sick deTec4 Core
Type :	Type 4 (IEC 61496-1)
Safety integrity level :	SIL3 (IEC 61508), SILCL3 (IEC 62061)
Performance level :	PL e (ISO 13849-1)
Number of beams :	2 / 3 / 4
Beam separation or resolution :	500 mm / 400 mm / 300 mm
Enclosure rating :	IP65 (IEC 60529), IP67 (IEC 60529)

Why Choose Us?

Customer Helpline

Sick deTem4 Core & deTem2 Core access protection safety devices

Sick M4C-SA0250LA10 (1082684) deTem4 Core sender, 17m, 2 beams, 500mm separation

Sick M4C-SA0340LA10 (1082687) deTem4 Core sender, 17m, 3 beams, 400mm separation

Sick M4C-SA0430LA10 (1082690) deTem4 Core sender, 17m, 4 beams, 300mm separation

Sick M4C-SA0250HA10 (1082685) deTem4 Core sender, 90m, 2 beams, 500mm separation

Sick M4C-SA0340HA10 (1082688) deTem4 Core sender, 90m, 3 beams, 400mm separation

Sick M4C-SA0430HA10 (1082691) deTem4 Core sender, 90m, 4 beams, 300mm separation

Sick M4C-EA02500A10 (1082686) deTem4 Core receiver, 17m/90m, 2 beams, 500mm separation

Sick M4C-EA03400A10 (1082689) deTem4 Core receiver, 17m/90m, 3 beams, 400mm separation

Sick M4C-EA04300A10 (1082692) deTem4 Core receiver, 17m/90m, 4 beams, 300mm separation

Sick M2C-SA0250LA10 (1085562) deTem2 Core sender, 17m, 2 beams, 500mm separation

Sick M2C-SA0340LA10 (1085565) deTem2 Core sender, 17m, 3 beams, 400mm separation

Sick M2C-SA0430LA10 (1085568) deTem2 Core sender, 17m, 4 beams, 300mm separation

Sick M2C-SA0250HA10 (1085563) deTem2 Core sender, 90m, 2 beams, 500mm separation

Sick M2C-SA0340HA10 (1085566) deTem2 Core sender, 90m, 3 beams, 400mm separation

Sick M2C-SA0430HA10 (1085569) deTem2 Core sender, 90m, 4 beams, 300mm separation

Sick M2C-EA02500A10 (1085564) deTem2 Core receiver, 17m/90m, 2 beams, 500mm separation

Sick M2C-EA03400A10 (1085567) deTem2 Core receiver, 17m/90m, 3 beams, 400mm separation

Sick M2C-EA04300A10 (1085570) deTem2 Core receiver, 17m/90m, 4 beams, 300mm separation
