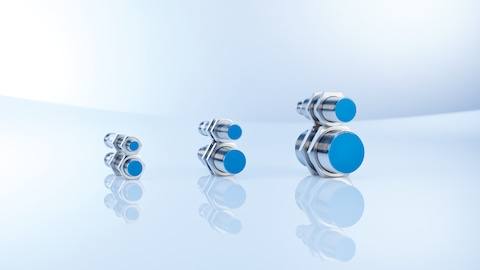

Sick IMX inductive sensors with quadruple sensing range

Inductive proximity sensors with a quadruple sensing range for large distances in industrial environments.

For applications that need larger distances. Significantly greater distances: IMX offers four times the sensing range of conventional sensors, setting a new standard for inductive proximity sensors. Sensing ranges of up to 50 mm ensure a higher process performance - making IMX ideal for applications that were previously inconceivable with inductive sensors.

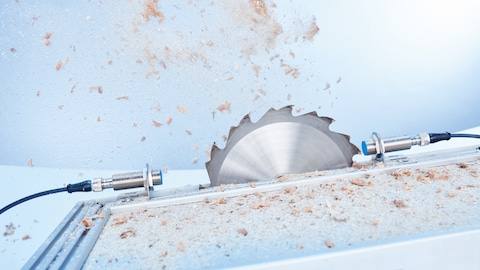

In space-critical applications, IMX proximity sensors save installation space by using smaller designs. At the same time, the greater distance reduces mechanical damage. The rugged, durable design ensures less downtimes, stable processes and high plant availability.

Benefits:

• Less installation space required than for larger standard sensors with comparable sensing ranges
• Reduced risk of mechanical damage due to larger mounting distance from the target object
• Avoidance of incorrect switching and more stable processes thanks to high operating reserves
• Low mutual interference, several sensors can be installed close to each other
• Higher degree of standardization by using the same sensors for different applications
• Quick and easy commissioning thanks to visual adjustment indicator and no need for prior parameterization
• Long sensor service life thanks to rugged and durable design

Features:

• Types: M8 to M30
• Large sensing ranges: 4 mm to 50 mm
• Enclosure rating: IP68
• Temperature range: –25 °C to +75 °C
• Nickel-plated brass housing, plastic sensing face
• Visual adjustment indicator
• Resistant against oils and cooling lubricant
• 4-fold sensing ranges

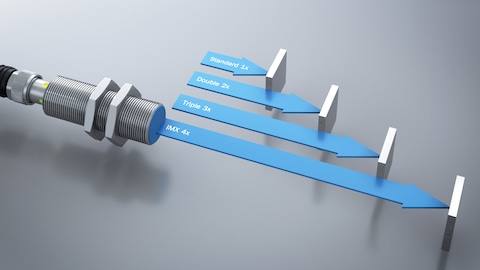

4-fold sensing range for larger distances.

With their 4-fold sensing ranges, the Sick IMX inductive proximity sensors detect objects from a greater distance than other inductive proximity sensors and thereby open up new application possibilities. The sensors can be used in many applications where space is limited or additional distance is required. With sensing ranges of up to 50 mm, they ensure stable processes as objects can be detected from a safe distance without the risk of collision. IMX sensors allow the use of smaller designs without compromising the sensing range. In addition, the degree of standardization can be increased by using the same sensors in different applications.
