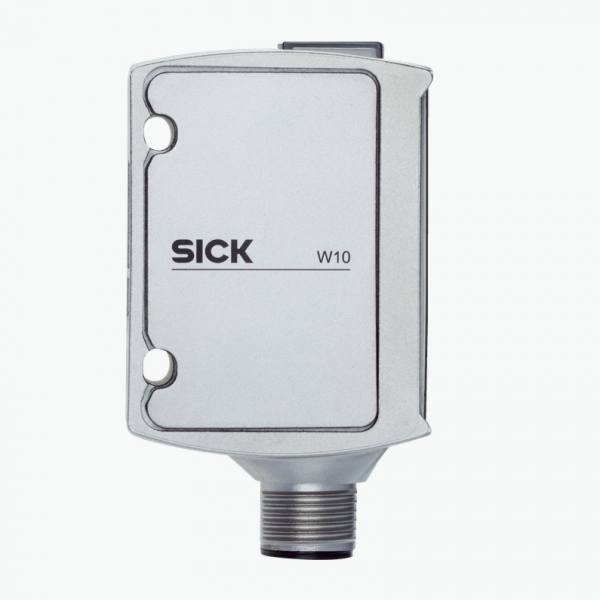

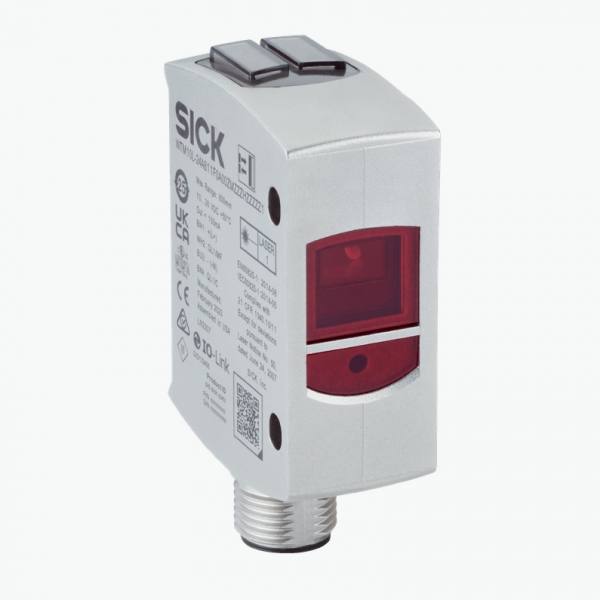

The Sick W10 photoelectric proximity sensor’s ease of use, sturdy design and performance make it ideal for precise object detection in demanding environments.

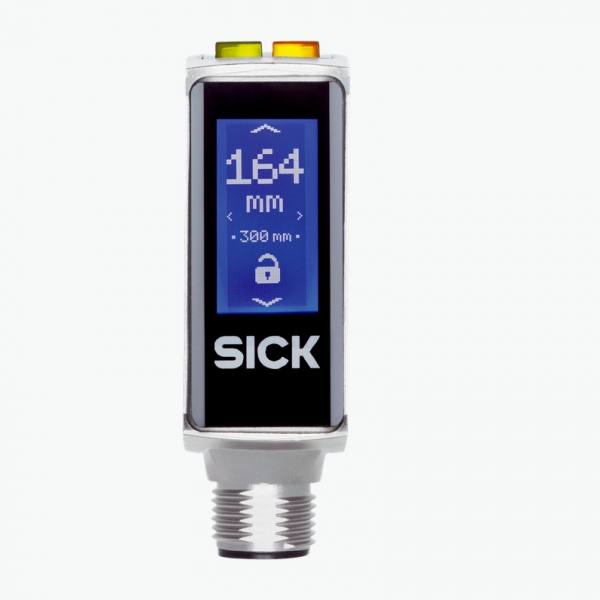

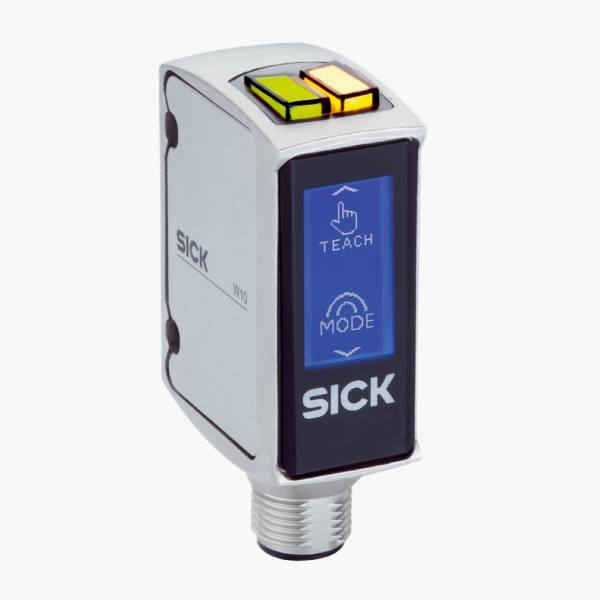

The touchscreen display is intuitive to use, allowing parameters to be set quickly. Situation-dependent teach-ins allow convenient sensor adaptation to individual applications.
The fact that various Multi-Mode functions and configurations, such as foreground and background suppression, are combined in a single sensor allows success in a wide range of applications.
Technical data overview:
Dimensions (W x H x D): | 18 mm x 57 mm x 42.2 mm |
Functional principle detail: | Background suppression, Foreground suppression, Multi-Mode |
Light source: | Laser |
Type of light: | Visible red light |
Enclosure rating: | IP67, IP69 |
Housing material: | Metal |
Adjustment: | Display |
