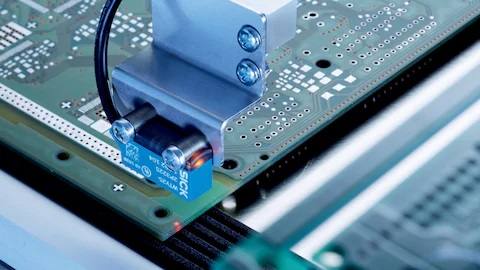

Sick W2S-2 Miniature photoelectric sensors
The incredibly small latest generation Sick W2S-2 miniature photoelectric sensor offers completely new machine design possibilities. Intelligent features: the sensors feature background suppression that enables detection of black objects with a degree of reflection of 1%. The Sick W2S-2 also offers world-class sensing distances in this housing size.
Whether it is used in machines in the pharmaceutical industry, in logistics handling applications or in automatic assembly equipment, the Sick ultra-compact W2S-2 offers optimal performance and high reliability in industrial environments. Industry 4.0 is already on board: Both the sensing distance as well as continuous monitoring are set via the controller. The W2S-2 reduces the load on the machine control by using a counter, timestamp and false tripping suppression functions.
Programmable sensors, adjustable via a 3-turn potentiometer, and sensors with fixed sensing distances of 15 mm, 30 mm, 45 mm and 60 mm are also available.
At a glance
- Sensor with background suppression and without any significant black/white shift
- PinPoint 2.0 LED with extended sensing distances and high operating reserves
- A variety of application possibilities thanks to clearly-defined laser-like or line-shaped light spots
- Detection of highly-transparent and reflective objects using sensors with V-optics
Photoelectric retro-reflective sensor with autocollimation and a clearly visible light spot
Mouse over image or click to zoom in.
Downloads
Found 70 items
Sick WTB2S-2P3210 (1063314) 18mm Background suppression, PNP Light/dark, M8 4-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2N1130 (1063321) 36mm Background suppression, NPN Light/dark, Cable
£136.22(£163.46 Incl VAT)
Sick WTB2S-2N1110 (1063516) 18mm Background suppression, NPN Light/dark, Cable
£136.22(£163.46 Incl VAT)
Sick WTB2S-2P3230 (1063517) 36mm Background suppression, PNP Light/dark, M8 4-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2P3260 (1063545) 66mm Background suppression, PNP Light/dark, M8 4-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2SC-2P3244 (1063550) 110mm Background suppression, PNP Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WTB2S-2N1145 (1063552) 110mm Background suppression, NPN Light, Cable
£162.71(£195.25 Incl VAT)
Sick WL2S-2N1130 (1063571) 1.2m Retro-reflective sensor, NPN Light/Dark, Cable
£119.20(£143.04 Incl VAT)
Sick WL2S-2P3230 (1063572) 1.2m Retro-reflective sensor, PNP Light/Dark, M8 4-pin pigtail (200mm)
£119.20(£143.04 Incl VAT)
Sick WTB2SC-2P3274 (1063646) 90mm Background suppression with line, PNP Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WL2SG-2F3235 (1063647) 1.2m Retro-reflective sensor, clear, PNP Dark, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WSE2S-2P3130 (1063521) 2.2m Through-beam, PNP Light, M8 3-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WSE2S-2F3130 (1063523) 2.2m Through-beam, PNP Dark, M8 3-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WSE2S-2P3230 (1063650) 2.2m Through-beam, PNP Light/dark, M8 4-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WSE2S-2N1130 (1063660) 2.2m Through-beam, NPN Light/dark, M8 4-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P1030S13 (1063814) 30mm Background suppression, PNP Light, Cable 3.5m
£145.68(£174.82 Incl VAT)
Sick WTB2S-2P3030S16 (1063829) 30mm Background suppression, PNP Light, Cable 3.5m (AMP)
£145.68(£174.82 Incl VAT)
Sick WTB2S-2P3110 (1064395) 18mm Background suppression, PNP Light, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2F3110 (1064396) 18mm Background suppression, PNP Dark, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2N3210 (1064400) 18mm Background suppression, NPN Light/dark, M8 4-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2P3130 (1064575) 36mm Background suppression, PNP Light, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2F3130 (1064576) 36mm Background suppression, PNP Dark, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WSE2S-2E3130 (1064588) 2.2m Through-beam, NPN Dark, M8 3-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WL2S-2P3130 (1064592) 1.2m Retro-reflective sensor, PNP Light, M8 3-pin pigtail (200mm)
£119.20(£143.04 Incl VAT)
Sick WL2S-2F3130 (1064593) 1.2m Retro-reflective sensor, PNP Dark, M8 3-pin pigtail (200mm)
£119.20(£143.04 Incl VAT)
Sick WL2S-2K3230 (1064594) 1.2m Retro-reflective sensor, PNP Light/Dark, M8 3-pin pigtail (200mm)
£119.20(£143.04 Incl VAT)
Sick WTB2S-2P3160 (1064607) 66mm Background suppression, PNP Light, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2F3160 (1064608) 66mm Background suppression, PNP Dark, M8 3-pin pigtail (200mm)
£136.22(£163.46 Incl VAT)
Sick WTB2S-2P1145 (1064614) 110mm Background suppression, PNP Light, Cable
£162.71(£195.25 Incl VAT)
Sick WTB2S-2P3245 (1064615) 110mm Background suppression, PNP Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WTB2S-2P3275 (1064620) 90mm Background suppression with line, PNP Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WTB2S-2N1175 (1064621) 90mm Background suppression with line, NPN Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WL2S-2N3230 (1064659) 1.2m Retro-reflective sensor, NPN Light/Dark, M8 4-pin pigtail (200mm)
£119.20(£143.04 Incl VAT)
Sick WTV2S-2P1320 (1064660) 36mm Background suppression with V-optics, PNP Light, Cable
£147.58(£177.10 Incl VAT)
Sick WL2SG-2P3235 (1065929) 1.2m Retro-reflective sensor, clear, PNP Light, M8 4-pin pigtail (200mm)
£162.71(£195.25 Incl VAT)
Sick WL2SG-2E1135 (1065930) 1.2m Retro-reflective sensor, clear, NPN Dark, Cable
£162.71(£195.25 Incl VAT)
Sick WTV2S-2N1320 (1066109) 36mm Background suppression with V-optics, NPN Light, Cable
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P1151 (1066110) 150mm Background suppression, PNP Light/dark, Cable
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P3251 (1066111) 150mm Background suppression, PNP Light/dark, M8 4-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2N1151 (1066113) 150mm Background suppression, NPN Light/dark, Cable
£147.58(£177.10 Incl VAT)
Sick WTB2S-2N3251 (1066114) 150mm Background suppression, NPN Light/dark, M8 4-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P3151 (1067502) 150mm Background suppression, PNP Light, M8 3-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2F3151 (1067503) 150mm Background suppression, PNP Dark, M8 3-pin pigtail (200mm)
£147.58(£177.10 Incl VAT)
Sick WSE2S-2F3030S01 (1068155) 2.2m Through-beam, PNP Dark, M8 3-pin pigtail (700mm)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P3130S01 (1068960) 36mm Background suppression, PNP Light, Cable, delay
£147.58(£177.10 Incl VAT)
Sick WSE2S-2P3030S02 (1069003) 2.2m Through-beam, PNP Light, M8 3-pin pigtail (1m)
£147.58(£177.10 Incl VAT)
Sick WTB2S-2P3151S22 (1069138) 150mm Background suppression, PNP Light, M8 3-pin pigtail (700mm)
£162.71(£195.25 Incl VAT)
